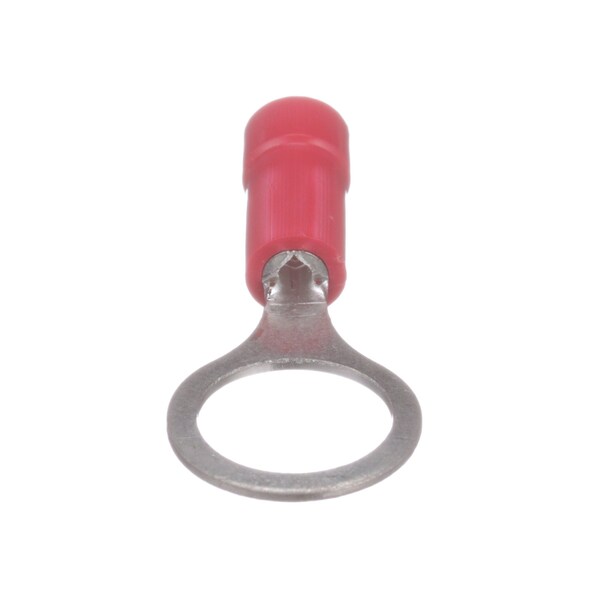

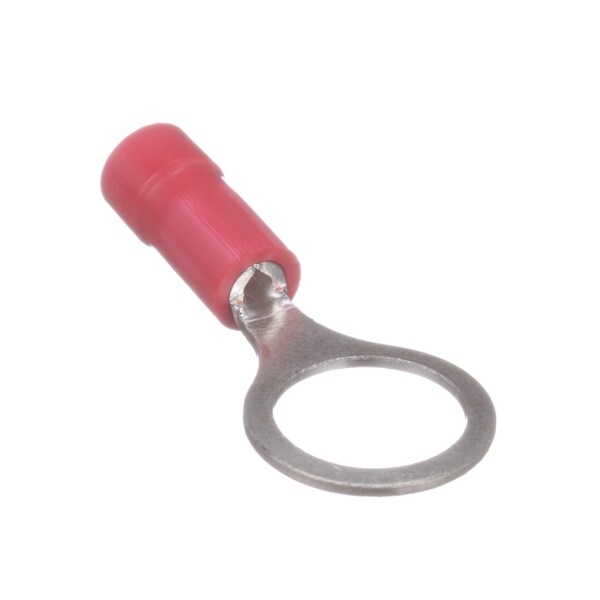

Ring Term, vinyl Insul, 22 - 18 AWG, 3/8" stud, PV18-38R-MY, PK 1000
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 3/8 in |
| Insulation Color | Red |
| Overall Length | 1.19 in |
| Connection Material | Copper |
| Tongue Width - Wire Connector | 0.53 in |
| Max. Temp. | 167 deg F |
| Standards | UL Listed 587H E52164, CSA Certified LR31212 |
| Features | Brazed Seam, Flame Retardant |
| Terminal Type | Ring Tongue |
| Max. Voltage | 600 V |
| Item | Ring Terminal |
| Seam | Funnel |
| Finish | Tin-Plated |
| Length | 1.2 in |
| Width | 1/2 in |
| Insulation Dia | 0.15 in |
| Product Material | Copper |
| Insulation Material | Vinyl |
| Connector Details | 1 x (Ring Terminal) |
| Product Color | Red |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Type | Terminal Connector |
| Outside Diameter Inches | 0.15 in |
| Product Class | Wire Termination |
| Color Coding | Red |
| Max Operating Temperature | 75 degrees celsius |
| Barrel Type | Funnel Entry |
| Package Quantity | 1000 |
