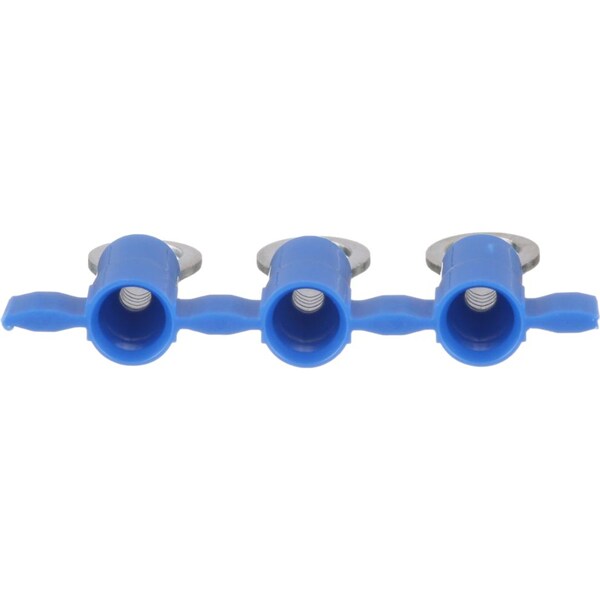

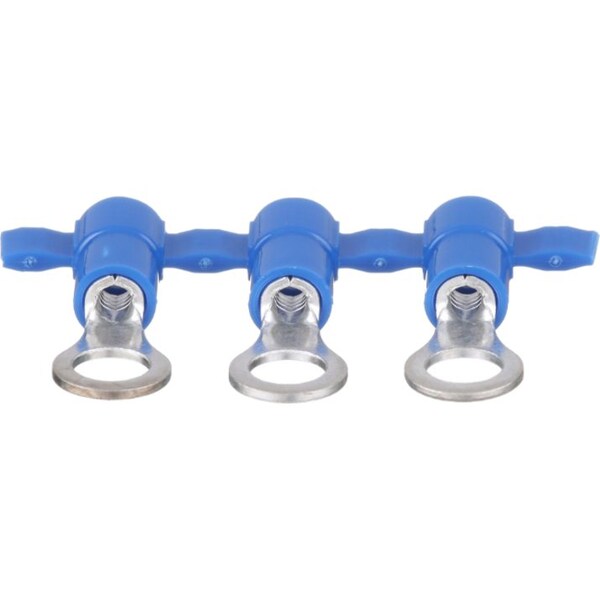

Ring Term, Vyl, 16, 14 Awg, #10 Stud, PK3000
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #10 |
| Insulation Color | Blue |
| Item | Ring Term,Vyl,16,14 Awg,#10 Stud,PK3000 |
| Seam | Funnel |
| Max. Voltage | 600 V |
| Standards | cULus Listed 587H E52164, CSA Certified LR31212 |
| Overall Length | 0.86 in |
| Terminal Type | Ring Tongue |
| Max. Temp. | 221 deg F |
| Features | Flame Retardant, Molded |
| Connection Material | Copper |
| Width | 0.3 in |
| Finish | Tin-Plated |
| Length | 0.9 in |
| Tongue Width - Wire Connector | 0.31 in |
| Insulation Dia | 0.17 in |
| Product Name | Terminal Connector |
| Product Type | Terminal Connector |
| Product Material | Copper |
| Product Color | Blue |
| Connector Details | 1 x (Ring Terminal) |
| Connector Plating | Tin |
| Insulation Material | Vinyl, Metal, Plastic |
| Color Coding | Blue |
| Max Operating Temperature | 105 degrees celsius |
| Product Class | Ring Terminals |
| Package Quantity | 3000 |
