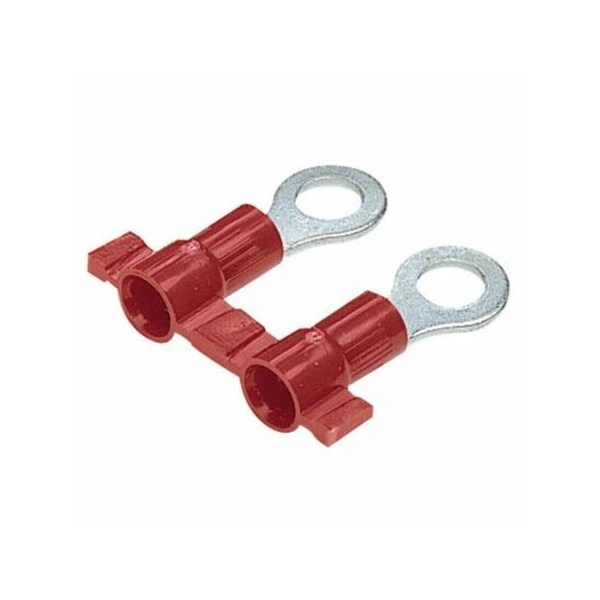

Ring Term, Vyl, 22, 18 Awg, 3/8" Stud, PK2000
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 3/8 in |
| Insulation Color | Red |
| Item | Ring Term,Vyl,22,18 Awg,3/8" Stud,PK2000 |
| Seam | Funnel |
| Standards | cULus Listed 587H E52164, CSA Certified LR31212 |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Features | Flame Retardant, Molded |
| Max. Temp. | 221 deg F |
| Overall Length | 1.15 in |
| Terminal Type | Ring Tongue |
| Tongue Width - Wire Connector | 0.53 in |
| Finish | Tin-Plated |
| Length | 1.1 in |
| Width | 1/2 in |
| Insulation Dia | 0.15 in |
| Product Color | Red |
| Insulation Material | Vinyl, Copper |
| Product Name | Terminal Connector |
| Product Type | Terminal Connector |
| Connector Plating | Tin |
| Connector Details | 1 x (Ring Terminal) |
| Product Class | Wire Termination |
| Outside Diameter Inches | 0.15 in |
| Max Operating Temperature | 105 degrees celsius |
| Color Coding | Red |
| Barrel Type | Funnel Entry |
| Package Quantity | 2000 |
