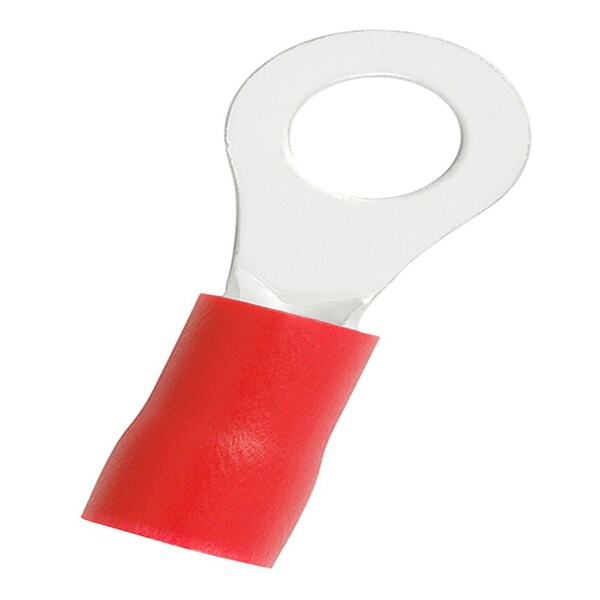

Terminal de anillo Vyl aislado de 8 Awg, paquete de 25 unidades, ideal para conexiones eléctricas seguras y confiables.
| Wire Range | 8 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 5/16 in |
| Insulation Color | Red |
| Item | Ring Term,Vyl,Insul,8 Awg,PK25 |
| Terminal Type | Ring Tongue |
| Standards | UL Listed 587H E52164; CSA Certified LR31212 |
| Seam | Standard, Brazed |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Max. Temp. | 221 deg F |
| Overall Length | 1-1/2 in |
| Width | 0.59 in |
| Finish | Tin-Plated |
| Tongue Width - Wire Connector | 0.59 in |
| Insulation Dia | 0.32 in |
| Max Operating Temperature | 105 degrees celsius |
| Barrel Type | Standard |
| Outside Diameter Inches | 0.59 in |
| Color Coding | Red |
| Product Class | Wire Termination |
| Package Quantity | 25 |
