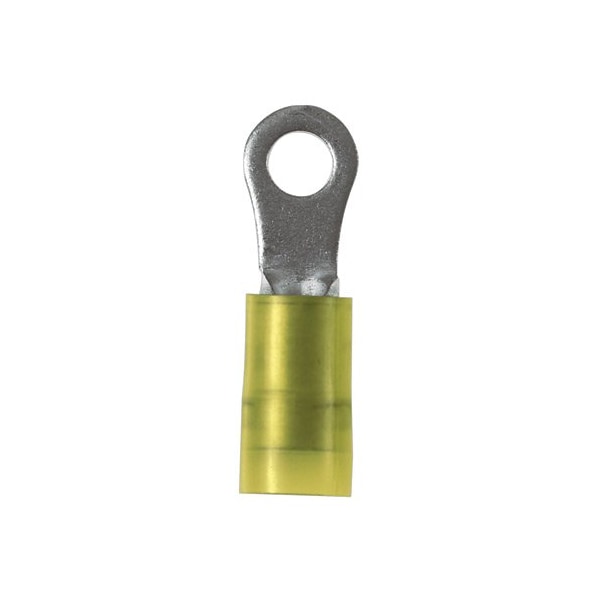

Ring Terminal, heavy duty, nylon insulat
| Wire Range | 16 to 12 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 1/4 in |
| Insulation Color | Yellow |
| Item | Ring Terminal |
| Standards | UL Listed 587H E52164, CSA Certified LR31212 |
| Terminal Type | Ring Tongue |
| Max. Voltage | 600 V |
| Features | Flame Retardant |
| Connection Material | Copper |
| Max. Temp. | 221 deg F |
| Tongue Width - Wire Connector | 0.52 in |
| Seam | Grip Sleeved |
| Overall Length | 1.24 in |
| Finish | Tin-Plated |
| Width | 1/2 in |
| Length | 1.2 in |
| Insulation Dia | 0.23 in |
| Product Color | Yellow |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Connector Details | 1 x (Ring Terminal) |
| Product Type | Terminal Connector |
| Product Material | Copper |
| Insulation Material | Nylon, Metal |
| Max Operating Temperature | 105 degrees celsius |
| Barrel Type | Insulation Grip Sleeve |
| Product Class | Wire Termination |
| Color Coding | Yellow |
| Package Quantity | 50 |
