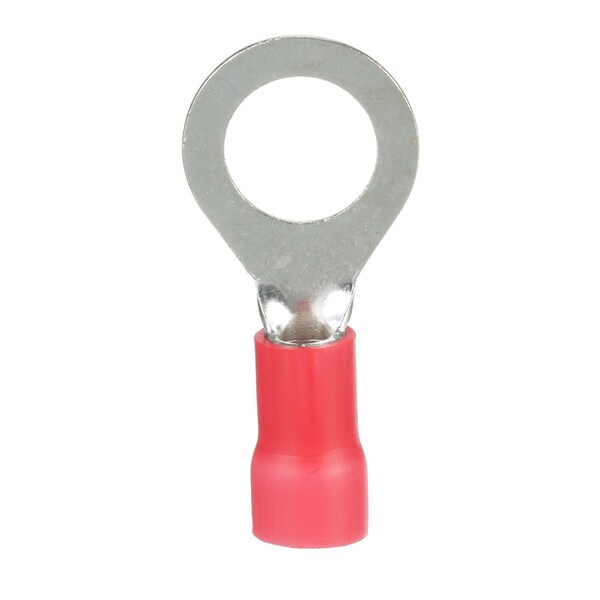

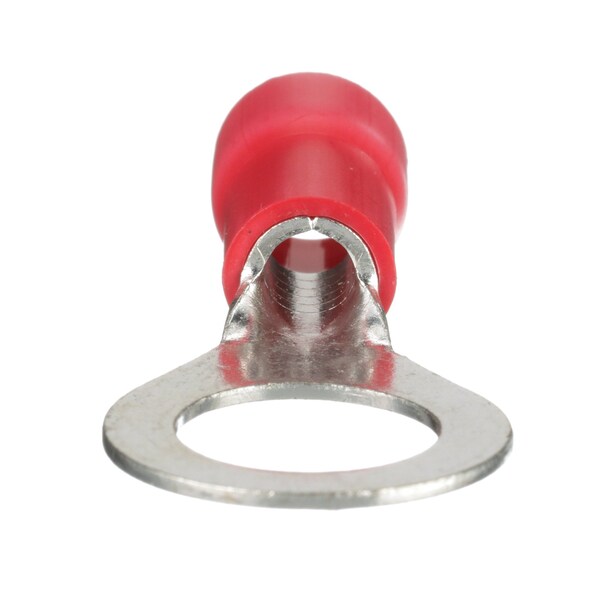

Ring Terminal, large wire, vinyl insulat
| Wire Range | 8 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 1/2 in |
| Insulation Color | Red |
| Overall Length | 1.74 in |
| Connection Material | Copper |
| Standards | cULus Listed 587H E52164 |
| Item | Ring Terminal |
| Max. Temp. | 221 deg F |
| Terminal Type | Ring Tongue |
| Tongue Width - Wire Connector | 0.82 in |
| Max. Voltage | 600 V |
| Seam | Funnel |
| Features | Flame Retardant, Brazed Seam |
| Width | 0.8 in |
| Length | 1.7 in |
| Finish | Tin-Plated |
| Insulation Dia | 0.28 in |
| Product Type | Terminal Connector |
| Connector Plating | Tin |
| Insulation Material | Vinyl |
| Product Name | Terminal Connector |
| Connector Details | 1 x (Ring Terminal) |
| Product Material | Copper |
| Product Color | Red |
| Product Class | Wire Termination |
| Max Operating Temperature | 105 degrees celsius |
| Outside Diameter Inches | 0.28 in |
| Color Coding | Red |
| Barrel Type | Funnel Entry |
| Package Quantity | 200 |
