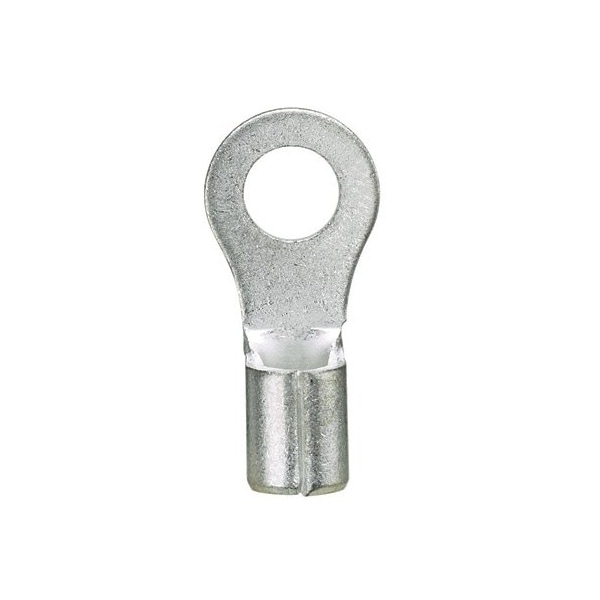

Ring Terminal, non-insulated, 26 - 22 AW
| Wire Range | 26 to 22 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #2 |
| Connection Material | Copper |
| Barrel Inside Dia. | 1/2 in |
| Overall Length | 0.52 in |
| Tongue Width - Wire Connector | 0.21 in |
| Seam | Standard, Brazed |
| Item | Ring Terminal |
| Max. Temp. | 302 deg F |
| Features | Brazed Seam |
| Terminal Type | Ring Tongue |
| Max. Voltage | 2,000 V |
| Finish | Tin-Plated |
| Length | 1/2 in |
| Width | 0.2 in |
| Connector Plating | Tin |
| Connector Details | 1 x (Ring Terminal) |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Product Type | Terminal Connector |
| Color Coding | Metallic |
| Product Class | Wire Termination |
| Outside Diameter Inches | 0.8 in |
| Max Operating Temperature | 150 degrees celsius |
| Package Quantity | 1000 |
