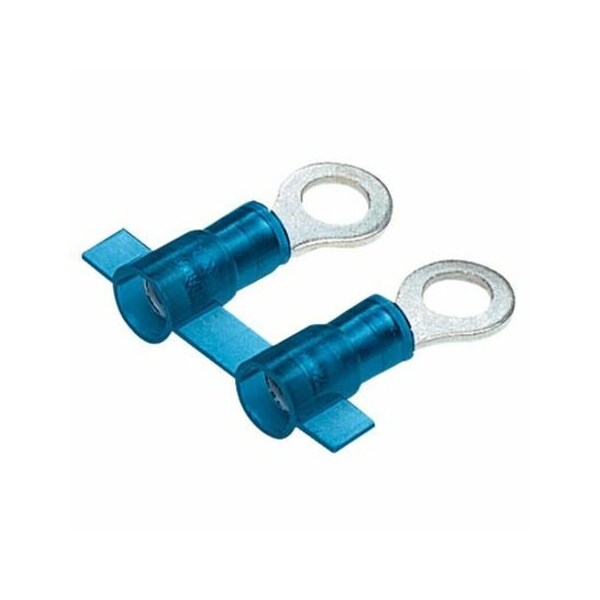

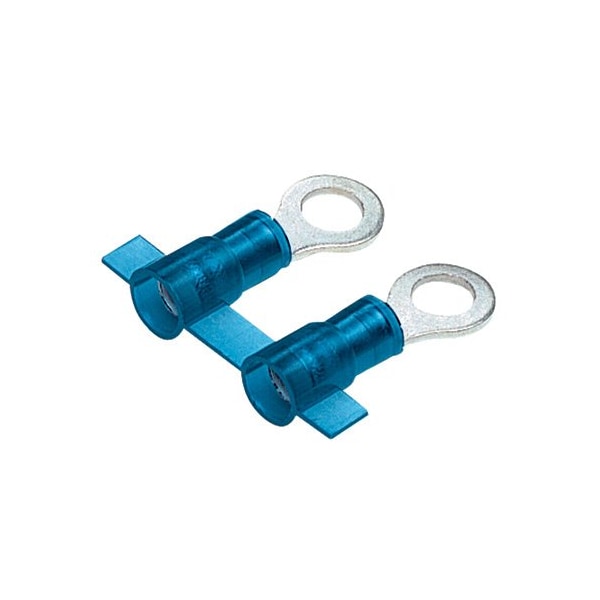

Ring Terminal, nylon insulated, 16 - 14 AWG, PNF14-14R-3K, PK 3000
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 1/4 in |
| Insulation Color | Blue |
| Connection Material | Copper |
| Seam | Funnel |
| Max. Voltage | 600 V |
| Features | Flame Retardant, Molded |
| Overall Length | 1.06 in |
| Item | Ring Terminal |
| Terminal Type | Ring Tongue |
| Tongue Width - Wire Connector | 0.46 in |
| Standards | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-154) |
| Max. Temp. | 221 deg F |
| Finish | Tinned |
| Length | 1.1 in |
| Width | 1/2 in |
| Insulation Dia | 0.162 in |
| Connector Details | 1 x (Ring Terminal) |
| Connector Plating | Tin |
| Product Type | Terminal Connector |
| Product Material | Copper, Metal |
| Insulation Material | Nylon |
| Material Details | Metal - Sleeve |
| Product Color | Blue |
| Product Name | Terminal Connector |
| Outside Diameter Inches | 0.29 in |
| Max Operating Temperature | 105 degrees celsius |
| Barrel Type | Insulation Grip Sleeve |
| Color Coding | Blue |
| Product Class | Wire Termination |
| Package Quantity | 3000 |
