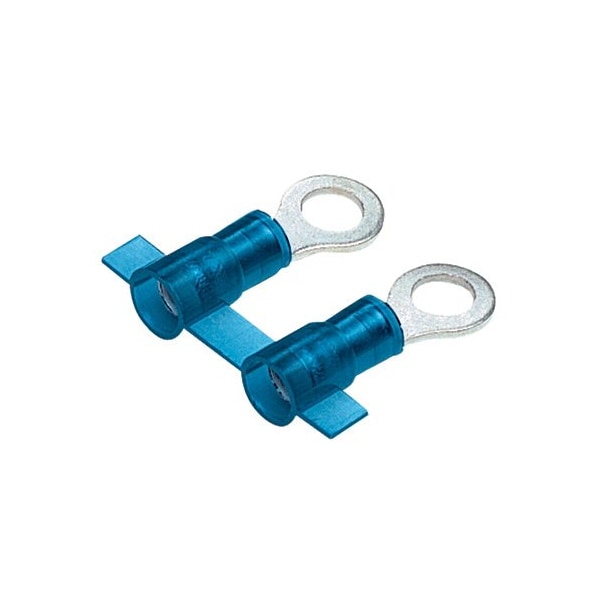

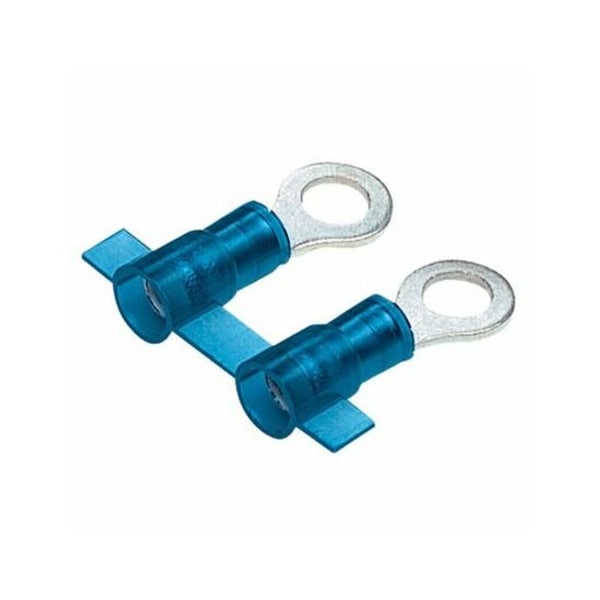

Ring Terminal, nylon insulated, 16 - 14
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #6 |
| Insulation Color | Blue |
| Max. Temp. | 221 deg F |
| Tongue Width - Wire Connector | 0.31 in |
| Seam | Grip Sleeved |
| Connection Material | Copper |
| Item | Ring Terminal |
| Max. Voltage | 600 V |
| Standards | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-107) |
| Features | Molded, Flame Retardant |
| Terminal Type | Ring Tongue |
| Overall Length | 0.87 in |
| Length | 0.9 in |
| Width | 0.3 in |
| Finish | Tinned |
| Insulation Dia | 0.8 in to 2.03 in |
| Product Name | Terminal Connector |
| Product Type | Terminal Connector |
| Insulation Material | Nylon |
| Material Details | Metal - Sleeve |
| Connector Plating | Tin |
| Connector Details | 1 x (Ring Terminal) |
| Product Material | Copper, Metal |
| Product Color | Blue |
| Product Class | Wire Termination |
| Max Operating Temperature | 105 degrees celsius |
| Outside Diameter Inches | 0.24 in |
| Color Coding | Blue |
| Barrel Type | Insulation Grip Sleeve |
| Package Quantity | 3000 |
