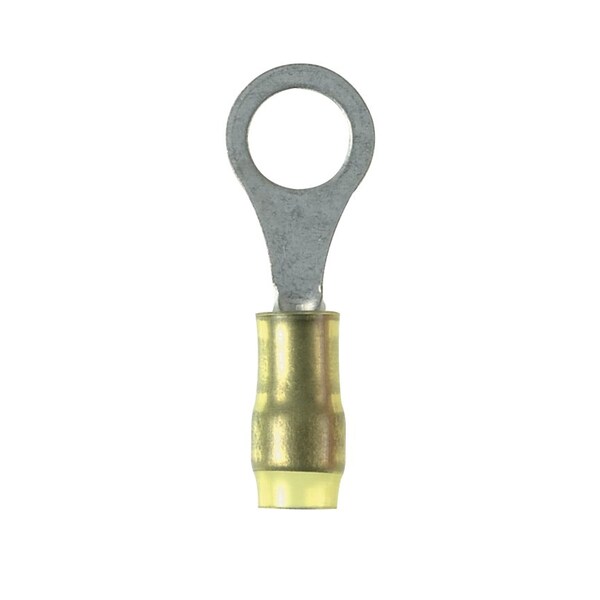

Terminal de anillo, nylon aislado, 26 - 22
| Wire Range | 26 to 22 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #6 |
| Insulation Color | Yellow |
| Tongue Width - Wire Connector | 1/4 in |
| Standards | UL Listed 587H E52164, CSA Certified LR31212 |
| Terminal Type | Ring Tongue |
| Seam | Grip Sleeved |
| Overall Length | 0.69 in |
| Features | Flame Retardant |
| Item | Ring Terminal |
| Max. Temp. | 221 deg C |
| Connection Material | Copper |
| Length | 0.7 in |
| Finish | Tin-Plated |
| Width | 0.2 in |
| Insulation Dia | 0.09 to 0.15 in |
| Connector Plating | Tin |
| Product Color | Yellow |
| Product Type | Terminal Connector |
| Insulation Material | Nylon, Metal |
| Connector Details | 1 x (Ring Terminal) |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Barrel Type | Insulation Grip Sleeve |
| Product Class | Ring Terminals |
| Color Coding | Yellow |
| Package Quantity | 1000 |
