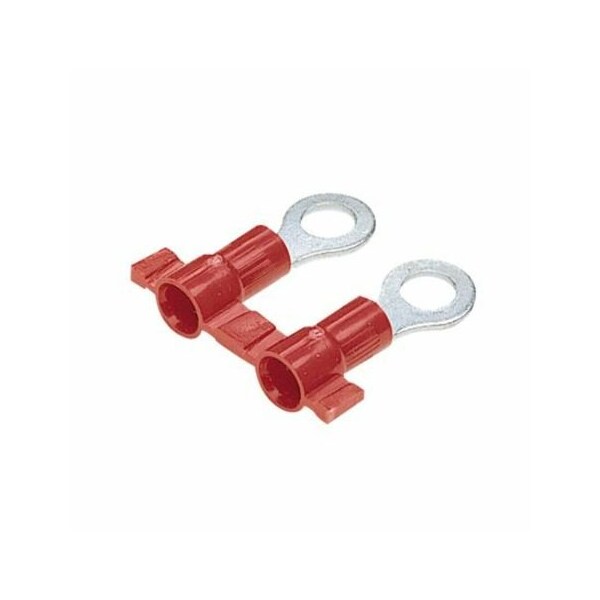

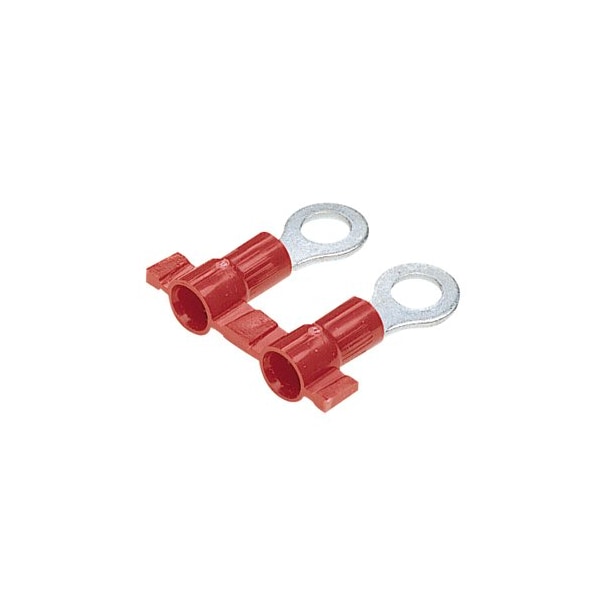

Terminal de anillo, aislante de vinilo, 22 - 18
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #8 |
| Insulation Color | Red |
| Max. Temp. | 221 deg F |
| Seam | Funnel |
| Standards | cULus Listed 587H E52164, CSA Certified LR31212 |
| Connection Material | Copper |
| Tongue Width - Wire Connector | 0.31 in |
| Features | Molded, Flame Retardant |
| Max. Voltage | 600 V |
| Terminal Type | Ring Tongue |
| Overall Length | 0.86 in |
| Item | Ring Terminal |
| Finish | Tin-Plated |
| Width | 0.3 in |
| Length | 0.9 in |
| Insulation Dia | 0.15 in |
| Connector Details | 1 x (Ring Terminal) |
| Product Name | Terminal Connector |
| Insulation Material | Vinyl, Copper |
| Product Color | Red |
| Connector Plating | Tin |
| Product Type | Terminal Connector |
| Product Class | Ring Terminals |
| Color Coding | Red |
| Barrel Type | Funnel Entry |
| Package Quantity | 3000 |
