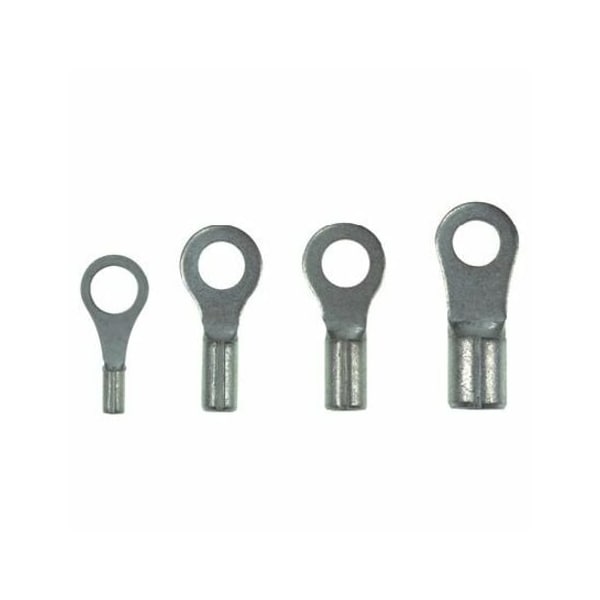

Anillo Trm, N-Ins, 1.0, 2.5mm cuadrados, perno M3, paquete de 100.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | M3 |
| Item | Ring Trm,N-Ins,1.0,2.5mm sq,M3Stud,PK100 |
| Connection Material | Copper |
| Max. Temp. | 302 deg F |
| Features | Brazed Seam |
| Terminal Type | Ring Tongue |
| Seam | Standard, Brazed |
| Overall Length | 0.62 in |
| Max. Voltage | 2,000 V |
| Tongue Width - Wire Connector | 0.22 in |
| Length | 0.6 in |
| Width | 0.2 in |
| Finish | Tin-Plated |
| Product Color | Metallic |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Product Type | Terminal Connector |
| Connector Details | 1 x (Ring Terminal) |
| Barrel Type | Funnel Entry |
| Max Operating Temperature | 150 degrees celsius |
| Product Class | Wire Termination |
| Package Quantity | 100 |
