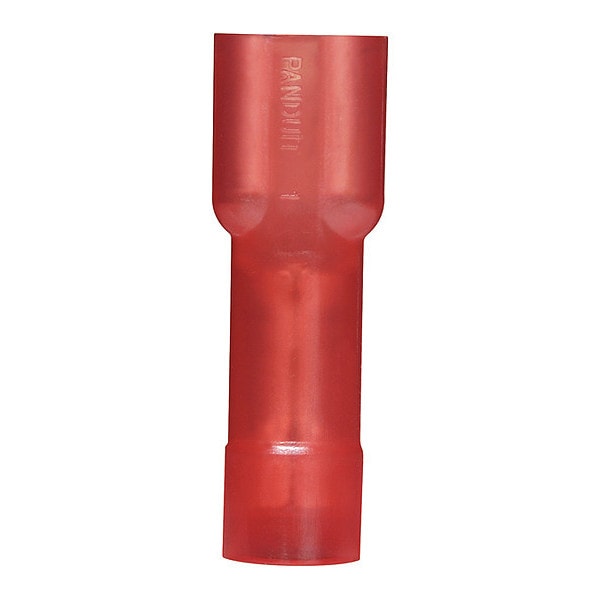

Spgrp, 87x.020", 22-18 Awg, PK100
Significa: Conector, 87x.020", 22-18 Awg, Paquete con 100 unidades.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Insulation Color | Red |
| Item | Spgrp,87x.020",22-18 Awg,PK100 |
| Features | Funnel Entry |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Overall Length | 0.89 in |
| Terminal Type | Female Disconnect-Supra Grip |
| Seam | Butted |
| Connection Material | Brass |
| Standards | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Insulation Dia | 0.13 in |
| Terminal Orientation | Straight |
| Width | 0.29 in |
| Color Coding | Red |
| Height | 0.22 in |
| Barrel Type | Butted Seam - Metal Insulation Grip |
| Max Operating Temperature | 105 degrees celsius |
| Product Class | Wire Termination |
| Finish | Tinned |
| Package Quantity | 100 |
