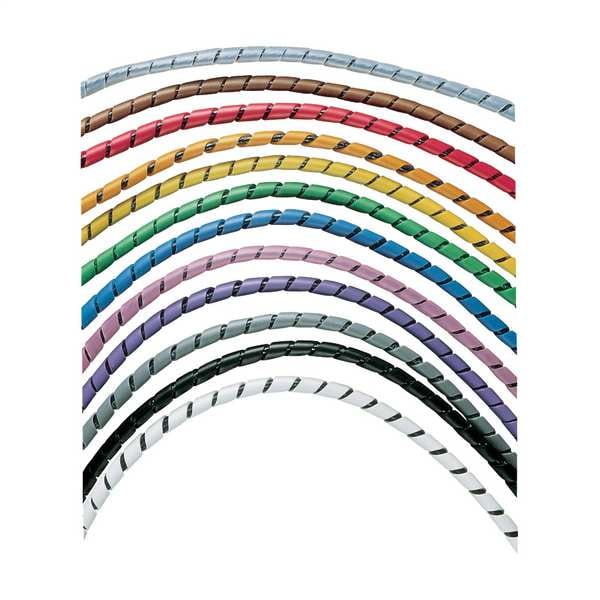

Spiral Wrap, 1.000 In., 100 ft. L, Natural
| Spiral Wrap Item | Spiral Wrap |
|---|---|
| Spiral Wrap Material | Polyethylene |
| Material of Construction | Polyethylene |
| Spiral Wrap Dia. Range | 0.8750 in to 6 in |
| Spiral Wrap Color | Natural |
| Spiral Wrap Length | 100 ft |
| Length | 100 ft |
| Width | 1 in |
| Color | Off White |
| Wall Thickness | 1/16 in |
| Temp. Range | -40 to 122 deg F |
| Standards | UL Recognized - E141152 |
| Item | Spiral Wrap |
| Description/Special Features | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing; Flammability Rating: UL94-HB |
| Material | Polyethylene |
| Properties | Abrasion Resistant |
| Max. Operating Temperature | 122 deg F |
| Min. Operating Temperature | -40 deg F |
| For Minimum Bundle Diameter | 7/8 in |
| For Maximum Bundle Diameter | 6 in |
| Outside Dia. | 1 in |
| Type | Spiral Wrap |
| Product Type | Cable Tying |
| Cable Manager Type | Cable Wrap |
| Product Color | Natural |
| Depth | 100 ft |
| Additional Information | Wall Thickness: 0.07 Inch |
| Product Name | Spiral Wrap |
| Product Material | Polyethylene |
| Minimum Bundle Diameter (mm) | 22.2 |
| Minimum Operating Temperature (°F) | -40 |
| Standards Met | UL Recognized - E141152; UL94HB |
| Wall Thickness (In.) | 0.07 |
| Wall Thickness (mm) | 1.78 |
| Maximum Bundle Diameter (In.) | 6 |
| Outer Diameter (In.) | 1 |
| Minimum Bundle Diameter (In.) | 0.875 |
| Resistance Properties | Abrasion Resistance |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Bundle Diameter (mm) | 152.4 |
| Environment | Indoor |
| Application | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Flammability Rating | UL94-HB |
| Overall Length (ft.) | 100 |
| Maximum Operating Temperature (°C) | 50 |
| Overall Length (m) | 30.5 |
| Includes | Installation Tool |
| Outer Diameter (mm) | 25.4 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Operating Temperature (°C) | 50 |
| Package Quantity | 1 |
