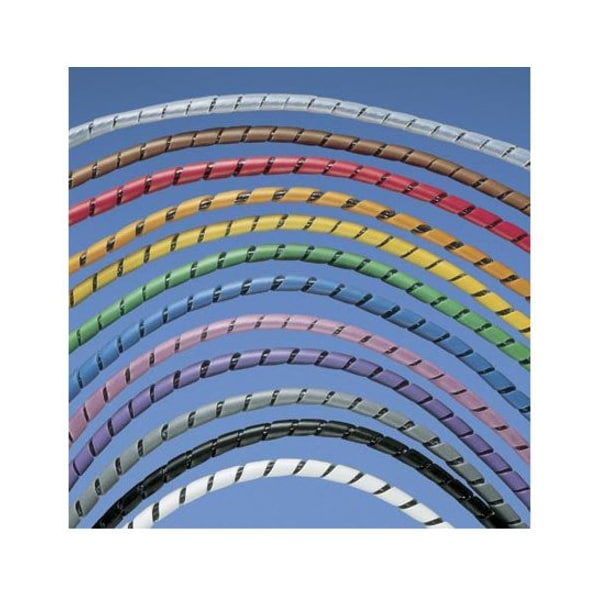

Spiral Wrap, .25" x 100 ft., Yellow, 1rl
| Material | Polyethylene |
|---|---|
| Length | 100 ft |
| Width | 1/4 in |
| Color | Yellow |
| Wall Thickness | 1/16 in |
| Item | Spiral Wrap,.25" x 100 ft.,Yellow,1rl |
| Includes | Installation Tool |
| Min. Operating Temperature | -40 deg F |
| For Maximum Bundle Diameter | 2 in |
| Max. Operating Temperature | 149 deg F |
| For Minimum Bundle Diameter | 3/16 in |
| Standards | UL Recognized - E141152 |
| Properties | Abrasion Resistant |
| Type | Spiral Wrap |
| Application | (1) Harness Multiple Cables Into a Single Manageable Bundle(2) Allows Breakouts of Single/Multiple Cables(3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Overall Length | 30.5 m |
| Features | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Standards Met | UL Recognized E141152 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Resistance Properties | Abrasion Protection |
| Maximum Operating Temperature (°F) | 149 |
| Maximum Bundle Diameter (mm) | 50.8 |
| Minimum Operating Temperature (°F) | -40 |
| Wall Thickness (mm) | 1 |
| Maximum Bundle Diameter (In.) | 2 |
| Overall Length (m) | 30.5 |
| Outer Diameter (In.) | 0.25 |
| Product Type | Spiral Wrap |
| Outer Diameter (mm) | 6.4 |
| Wall Thickness (In.) | 0.04 |
| Minimum Bundle Diameter (In.) | 0.18 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 65 |
| Note | T25F-C4Y replaces T25F-C4 |
| Overall Length (ft.) | 100 |
| Flammability Rating | UL94-HB |
| Product Name | Spiral Wrap |
| Package Contents | Spiral Wrap, Installation Tool |
| External Diameter | 1/4 in |
| Product Material | Polyethylene |
| Cable Manager Type | Cable Wrap |
| Product Color | Yellow |
| Product Class | Wire Routing, Management & Protection |
| Max Operating Temperature | 65 degrees celsius |
| Min Operating Temperature | -40 degrees celsius |
| Package Quantity | 1 |
