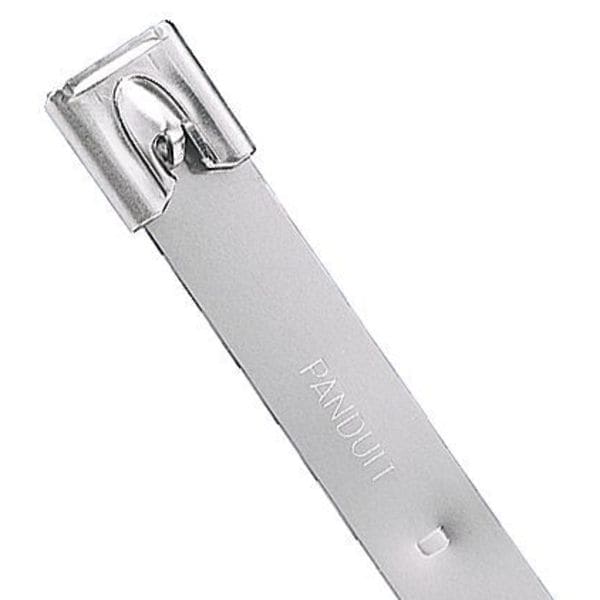

Stainless Steel Cable Tie, 17.1"L, PK50
| Item | Stainless Steel Cable Tie |
|---|---|
| Length | 17-7/64" |
| Width | 1/2 in |
| Max. Bundle Dia. | 4 in |
| Color | natural |
| Material | 316 stainless steel |
| Tensile Strength | 600 lb |
| Indoor/Outdoor | Indoor, Outdoor |
| Basic Material | Metal |
| Cable Tie Duty | Extra Heavy Duty |
| Thickness | 1/64 in |
| Locking Style | Self Locking Head |
| Features | Cross Section: Super-HeavyMaximum Bundle Diameter: 4.0 inchMinimum Bundle Diameter: 1.0 inchThickness: 0.010 inch |
| Temp. Range | -60 to 538 deg C |
| Resists | UV |
| Tensile Strength - Cable Tie | 600 lb |
| Standards | CE, ABS, GL, BV, LR, DNV, UL |
| Application | Used in Corrosive Environment |
| Minimum Operating Temperature (°C) | -60 |
| Sub Brand | Pan-Steel® |
| Body Width (In.) | 1/2 |
| Minimum Loop Tensile Strength (lb) | 600 |
| Maximum Operating Temperature (°F) | 1,000 |
| Body Width (mm) | 12.7 |
| Standards Met | CE,ABS,GL,BV,LR,DNV,UL |
| Overall Length (In.) | 17.1 |
| Maximum Bundle Diameter (In.) | 4 |
| Resistance Properties | UV Resistant |
| Minimum Installation Temperature (°F) | -76 |
| Minimum Bundle Diameter (In.) | 1 |
| Maximum Bundle Diameter (mm) | 102 |
| For Use With | RT2HT,ST3MT |
| Minimum Operating Temperature (°F) | -76 |
| Body Thickness (mm) | 0.25 |
| Body Thickness (In.) | 0.01 |
| Minimum Bundle Diameter (mm) | 25.4 |
| Maximum Operating Temperature (°C) | 538 |
| Minimum Installation Temperature (°C) | -60 |
| Overall Length (mm) | 434 |
| Product Type | Stainless Steel Cable Ties |
| Minimum Loop Tensile Strength (N) | 2,670 |
| Product Material | Stainless Steel |
| Product Name | Enhanced Pan-Steel MLT Series Self-Locking Stainless Steel Cable Tie |
| Product Line | Pan-Steel |
| Additional Information | Cross Section: Super-Heavy, Maximum Bundle Diameter: 4.0 inch, Minimum Bundle Diameter: 1.0 inch, Thickness: 0.010 inch |
| Certifications & Standards | RoHS |
| Cable Manager Type | Cable Tie |
| Minimum Loop Tensile Strength | 600 lb |
| Max Operating Temperature | 538 degrees celsius |
| Overall Length | 17.1 in |
| Min Operating Temperature | -60 degrees celsius |
| Product Class | Management, Protection, Wire Routing |
| Package Quantity | 50 |
