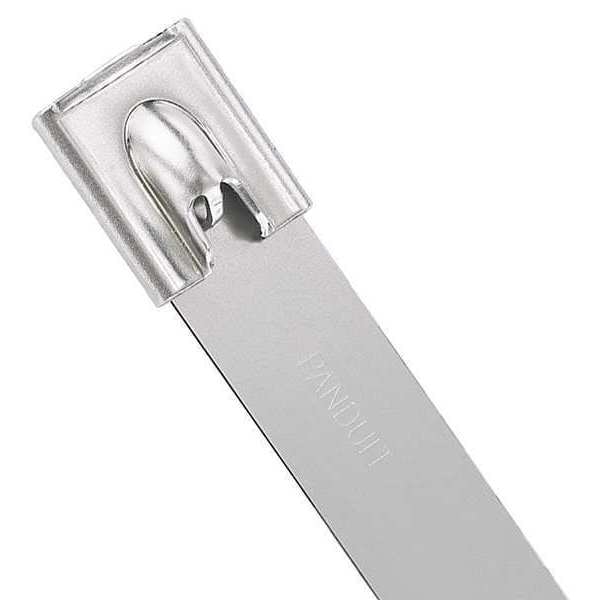

Stainless Steel Cable Tie, 17.1"L, PK50
| Item | Stainless Steel Cable Tie |
|---|---|
| Length | 17-7/64" |
| Width | 5/8 in |
| Max. Bundle Dia. | 4 in |
| Color | natural |
| Material | 316 stainless steel |
| Tensile Strength | 900 lb |
| Indoor/Outdoor | Indoor, Outdoor |
| Thickness | 0.02 in |
| Locking Style | Self Locking Head |
| Basic Material | Metal |
| Cable Tie Duty | Heavy Duty |
| Resists | UV |
| Features | Max. Bundle Diameter: 4.0"Min. Bundle Diameter: 1.0"Thickness: 0.38" |
| Temp. Range | -60 to 538 deg C |
| Standards | UL E56854, CE, ABS, GL, BV, LR, DNV |
| Application | Used in Harsh Environment |
| Product Type | Stainless Steel Cable Ties |
| For Use With | RT2HT, RT2HTN, PBTMT |
| Minimum Installation Temperature (°F) | -76 |
| Maximum Operating Temperature (°C) | 538 |
| Minimum Bundle Diameter (In.) | 1 |
| Standards Met | UL E56854,CE,ABS,GL,BV,LR,DNV |
| Body Thickness (mm) | 0.4 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (lb) | 900 |
| Minimum Bundle Diameter (mm) | 25.4 |
| Minimum Loop Tensile Strength (N) | 4,000 |
| Maximum Bundle Diameter (mm) | 102 |
| Maximum Operating Temperature (°F) | 1,000 |
| Overall Length (mm) | 434 |
| Minimum Operating Temperature (°C) | -60 |
| Resistance Properties | UV Resistant |
| Sub Brand | Pan-Steel® |
| Body Thickness (In.) | 0.015 |
| Maximum Bundle Diameter (In.) | 4 |
| Body Width (mm) | 16 |
| Minimum Installation Temperature (°C) | -60 |
| Overall Length (In.) | 17.1 |
| Body Width (In.) | 0.63 |
| Product Line | Pan-Steel |
| Cable Manager Type | Cable Tie |
| Product Material | Stainless Steel |
| Additional Information | Max. Bundle Diameter: 4.0", Min. Bundle Diameter: 1.0", Thickness: 0.38" |
| Product Name | Enhanced Pan-Steel MLT Series Self-Locking Stainless Steel Cable Tie |
| Certifications & Standards | RoHS, UL2043 |
| Max Operating Temperature | 538 degrees celsius |
| Overall Length | 17.1 in |
| Product Class | Management, Protection, Wire Routing |
| Min Operating Temperature | -60 degrees celsius |
| Package Quantity | 50 |
