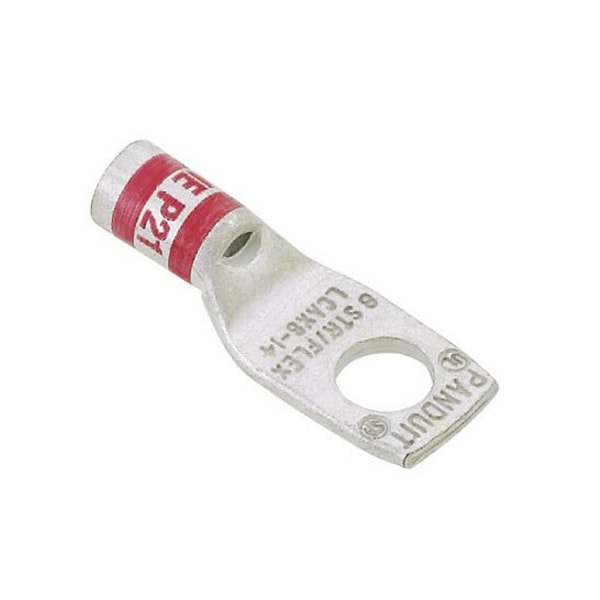

Std Flex Lug, 4/0 Awg, .25in, Wdw
Terminal flexible estándar, calibre 4/0, .25 pulgadas, acabado en madera.
| Cable Size | 4/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.19 in |
| Material | Tin-Plated Copper |
| Length | 2.3 in |
| Color Code | Purple |
| Item | Lug Compression Connector |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Overall Length | 2.3 in |
| Features | Corrosion Resistant, Angled Connector |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| T & B Die Index Number | 15 |
| Base Material | Copper |
| Tongue Width (In.) | 1.19 |
| DLO Copper Flex Conductor Size (AWG) | 36,617 |
| Inside Diameter (In.) | 0.65 |
| Class I Copper Flex Conductor Size (AWG) | 36,617 |
| Copper Code Conductor Size (AWG) | 36,617 |
| Wire Strip Length (mm) | 26.9 |
| Product Type | Copper Compression Connectors - Lugs |
| Outer Diameter (In.) | 0.81 |
| Outer Diameter (mm) | 20.57 |
| Class G Copper Flex Conductor Size (AWG) | 36,617 |
| Tongue Thickness (mm) | 4.1 |
| Class H Copper Flex Conductor Size (AWG) | 36,617 |
| Class M Copper Flex Conductor Size (AWG) | 36,617 |
| Barrel Length (In.) | 1.03 |
| Stud Hole Size (mm) | 6.4 |
| Inside Diameter (mm) | 16.51 |
| Lug Type | 1 Stud Hole Lug |
| Wire Strip Length (In.) | 42,370 |
| Tongue Type | Standard |
| Tongue Thickness (In.) | 0.16 |
| UL Temperature Rating (°C) | 90 |
| Stud Hole Size (In.) | 44,930 |
| Panduit Die Index Number | P54 |
| Class K Copper Flex Conductor Size (AWG) | 36,617 |
| Overall Length (In.) | 2.3 |
| Maximum Voltage (kV) | 35 |
| Burndy Die Index Number | 15 |
| Tongue Angle | Straight |
| Barrel Length (mm) | 26.2 |
| Tongue Width (mm) | 30.2 |
| Overall Length (mm) | 58.4 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard Barrel, Barrel with Inspection Window |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Class | Wire Termination |
| Package Quantity | 1 |
