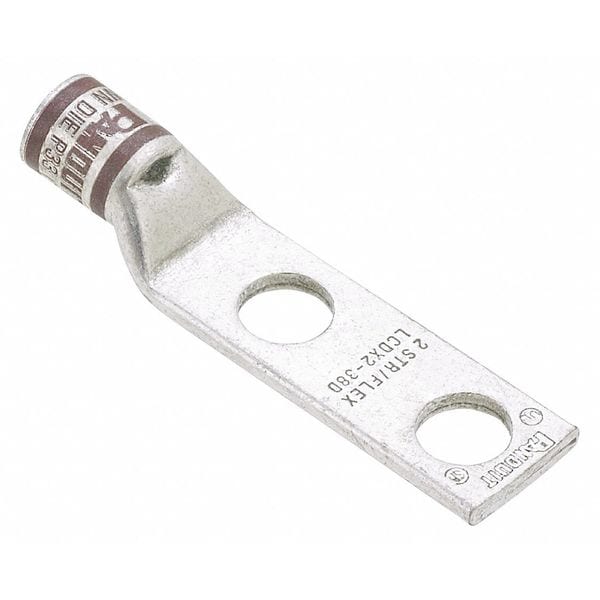

Stdflex Lug, 1/0 Awg, .63 pulgadas de espacio, Wdw
| Cable Size | 1/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.85 in |
| Material | Tin-Plated Copper |
| Length | 2.45 in |
| Color Code | Pink |
| Item | Lug Compression Connector |
| Overall Length | 2.45 in |
| Barrel Type | Standard Barrel, Barrel with Inspection Window |
| Stud Hole Spacing (In.) | 0.63 |
| Base Material | Copper |
| Stud Hole Size (mm) | 6.4 |
| Class H Copper Flex Conductor Size (AWG) | 36,526 |
| Overall Length (mm) | 62.2 |
| Tongue Width (In.) | 0.85 |
| Overall Length (In.) | 2.45 |
| Barrel Length (In.) | 0.72 |
| Class G Copper Flex Conductor Size (AWG) | 36,526 |
| Barrel Length (mm) | 18.3 |
| Outer Diameter (In.) | 0.58 |
| Product Type | Copper Compression Connectors - Lugs |
| DLO Copper Flex Conductor Size (AWG) | 36,526 |
| Class I Copper Flex Conductor Size (AWG) | 36,526 |
| UL Temperature Rating (°C) | 90 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Class M Copper Flex Conductor Size (AWG) | 36,526 |
| Wire Strip Length (mm) | 19.1 |
| Finish/Coating | Tin-Plated |
| Tongue Width (mm) | 21.6 |
| Stud Hole Size (In.) | 44,930 |
| Inside Diameter (mm) | 11.43 |
| Tongue Angle | Straight |
| Stud Hole Spacing (mm) | 16 |
| Burndy Die Index Number | 12 |
| Panduit Die Index Number | P42 |
| Outer Diameter (mm) | 14.73 |
| Maximum Voltage (kV) | 35 |
| Tongue Type | Standard |
| Copper Code Conductor Size (AWG) | 36,526 |
| Class K Copper Flex Conductor Size (AWG) | 36,526 |
| Inside Diameter (In.) | 0.45 |
| Tongue Thickness (In.) | 0.13 |
| Lug Type | 2 Stud Hole Lug |
| T & B Die Index Number | 12 |
| Tongue Thickness (mm) | 3.3 |
| Wire Strip Length (In.) | 44,989 |
| Product Class | Wire Termination |
| Package Quantity | 1 |
