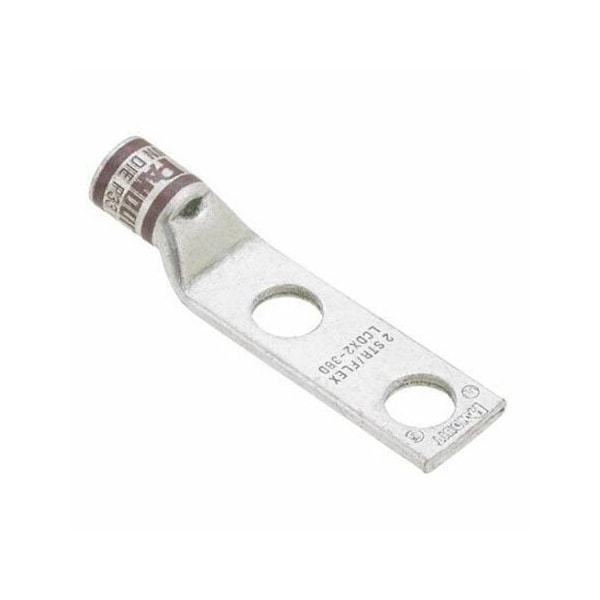

Stdflex Lug, 500mcm, .38", 1", Wdw
Traducción: Terminal Stdflex, 500mcm, .38", 1", Wdw
| Cable Size | 500 kcmil |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.89 in |
| Material | Tin-Plated Copper |
| Length | 4.08 in |
| Color Code | Pink |
| Item | Lug Compression Connector |
| Color | Pink |
| Overall Length | 4.08 in |
| Connection Type | 1 x Terminal |
| Connection Material | Tin |
| Features | Corrosion Resistant |
| Product Type | Compression Connectors - Lugs |
| Tongue Thickness (mm) | 6.6 |
| Panduit Die Index Number | P99 |
| Stud Hole Spacing (In.) | 1 |
| Tongue Width (mm) | 48 |
| Stud Hole Size (In.) | 44,993 |
| Class K Copper Flex Conductor Size (kcmil) | 500 |
| UL Temperature Rating (°C) | 90 |
| Class H Copper Flex Conductor Size (kcmil) | 500 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Class M Copper Flex Conductor Size (kcmil) | 500 |
| Tongue Thickness (In.) | 0.26 |
| Wire Strip Length (In.) | 1.56 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Length (In.) | 1.48 |
| Overall Length (In.) | 4.08 |
| Finish/Coating | Tin-Plated |
| DLO Copper Flex Conductor Size (kcmil) | 535 |
| Burndy Die Index Number | L99 |
| Maximum Voltage (kV) | 35 |
| Class G Copper Flex Conductor Size (kcmil) | 500 |
| Class I Copper Flex Conductor Size (kcmil) | 500 |
| Tongue Width (In.) | 1.89 |
| Tongue Type | Standard |
| Overall Length (mm) | 103.6 |
| Barrel Length (mm) | 37.6 |
| Wire Strip Length (mm) | 40 |
| Stud Hole Size (mm) | 9.5 |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Color | Pink |
| Product Material | Copper |
| Product Class | Wire Termination |
| Package Quantity | 1 |
