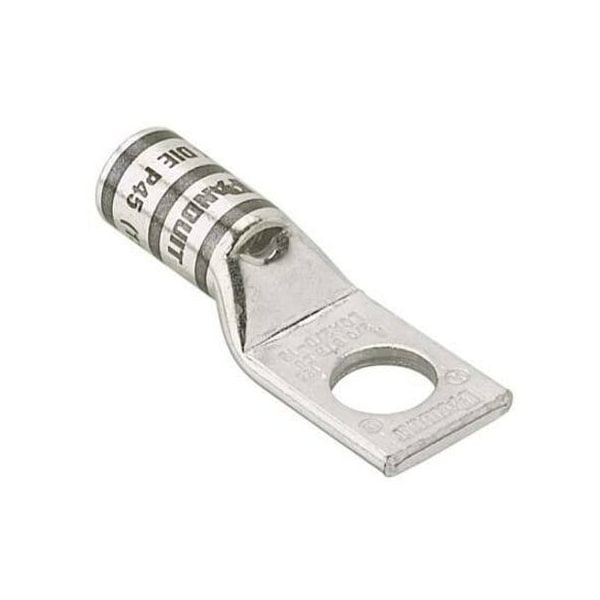

Stdlug, 8 Awg, .25in Stud, Wdw
| Cable Size | 8 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.48 in |
| Material | Tin-Plated Copper |
| Length | 1.34 in |
| Color Code | Red |
| Item | Lug Compression Connector |
| Overall Length | 1.34 in |
| Features | Corrosion Resistant |
| Maximum Voltage (kV) | 35 |
| Lug Type | 1 Stud Hole Lug |
| UL Temperature Rating (°C) | 90 |
| Overall Length (In.) | 1.34 |
| Overall Length (mm) | 34 |
| Tongue Type | Standard |
| Tongue Thickness (mm) | 1.8 |
| Wire Strip Length (In.) | 45,054 |
| Barrel Length (In.) | 0.56 |
| Tongue Angle | Straight |
| Barrel Length (mm) | 14.2 |
| Burndy Die Index Number | 49 |
| Tongue Width (mm) | 12.2 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Wire Strip Length (mm) | 15.9 |
| Tongue Thickness (In.) | 0.07 |
| Inside Diameter (In.) | 0.18 |
| Inside Diameter (mm) | 4.57 |
| T & B Die Index Number | 49 |
| Tongue Width (In.) | 0.48 |
| Panduit Die Index Number | P21 |
| Stud Hole Size (mm) | 6.4 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard Barrel, Barrel with Inspection Window |
| Base Material | Copper |
| Stud Hole Size (In.) | 44,930 |
| Outer Diameter (mm) | 6.85 |
| Outer Diameter (In.) | 0.27 |
| Copper Code Conductor Size (AWG) | 8 |
| Product Type | Copper Compression Connectors - Lugs |
| Connector Plating | Tin |
| Connector Details | 1 x Barrel Plug |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Product Class | Lugs, Splices, Accessories, Split Bolts |
| Package Quantity | 1 |
