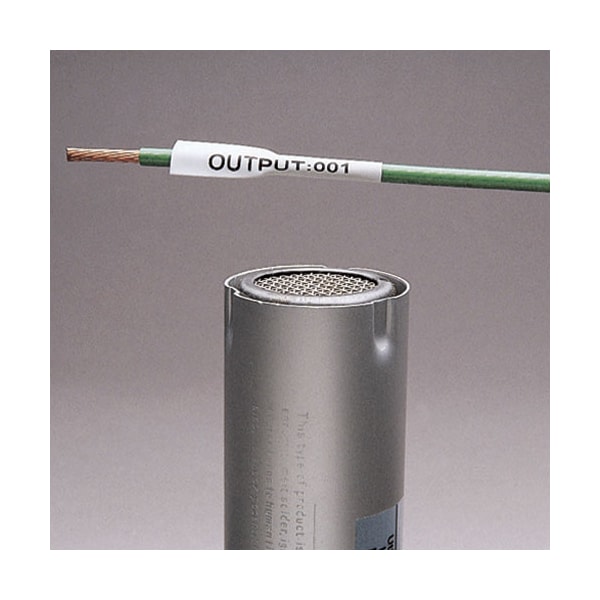

ThermTrans, Heatshrink Tubing, Mil Grade
| Material | Polyolefin |
|---|---|
| Color | Yellow |
| Width | 2 in |
| Height | 0.64 in |
| Overall Length | 0.64 in |
| Diameter (mm) | 9.7 |
| Maximum Operating Temperature (°F) | 275 |
| Printer Type | Thermal Transfer |
| Minimum Cable Diameter (In.) | 0.13 |
| Minimum Operating Temperature (°C) | -55 |
| Overall Width (mm) | 50.8 |
| Maximum Cable Diameter (In.) | 0.38 |
| Overall Height (In.) | 0.64 |
| Product Type | Heat Shrink Label |
| Label Property | Flammability, Fluid Resistance, Harsh Environments, Military Grade |
| Flammability Rating | VW-1 |
| Number of Labels per Row | 1 |
| Minimum Operating Temperature (°F) | -67 |
| Maximum Operating Temperature (°C) | 135 |
| Compatible Wire Gauge (AWG) | 45268 |
| Overall Width (In.) | 2 |
| Minimum Cable Diameter (mm) | 3.3 |
| Diameter (In.) | 0.38 |
| Resistance Properties | Military Grade |
| Label Application | Cable & Wire Marking |
| Maximum Cable Diameter (mm) | 9.7 |
| Number of Labels | 500 |
| Overall Height (mm) | 16.3 |
| Number of Sides | 1 |
| Max Operating Temperature | 135 degrees celsius |
| Diameter | 9.5 mm |
| Product Class | Signs, Labels & Identification |
| Min Operating Temperature | -55 degrees celsius |
| Package Quantity | 1 |
