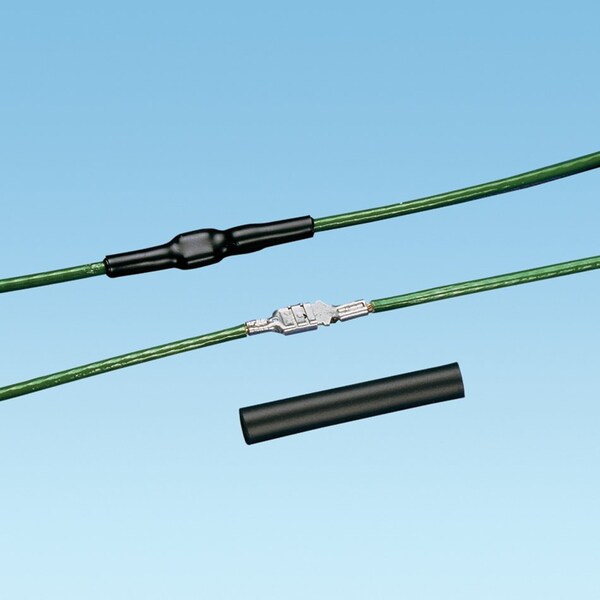

Thin Wall Heat Shrink Tubing, 0.19", PK25
| Item | Thin Wall Heat Shrink Tubing,0.19",PK25 |
|---|---|
| Shrink Ratio | 0.084 |
| Material | Adhesive Lined Cross-Linked Polyolefin |
| Color | Black |
| Length | 48 in |
| Application | Heat Shrink for damp applications. Provides excellent abrasion protection for insulating and protecting wires and cables |
| Overall Length | 1.2 m |
| Nominal Diameter (In.) | 0.187 |
| Maximum Recovered Inside Diameter (In.) | 0.093 |
| Product Type | Heat Shrink |
| Adhesive Lined | Yes |
| Shrink Temperature (°C) | 120 |
| Maximum Operating Temperature (°C) | 110 |
| Nominal Recovered Wall Thickness (mm) | 0.6 |
| Minimum Expanded Inside Diameter (In.) | 0.187 |
| Overall Length (ft.) | 4 |
| Overall Length (In.) | 48 |
| Overall Length (mm) | 1,219 |
| Maximum Operating Temperature (°F) | 230 |
| Nominal Recovered Wall Thickness (In.) | 0.023 |
| Maximum Recovered Inside Diameter (mm) | 2.4 |
| Minimum Expanded Inside Diameter (mm) | 4.8 |
| Shrink Temperature (°F) | 248 |
| Overall Length (m) | 1.2 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (mm) | 4.8 |
| Minimum Operating Temperature (°C) | -55 |
| Product Name | Cable Protector Heat Shrink Tube |
| Product Material | Polyolefin |
| Product Color | Black |
| Cable Manager Type | Heat Shrink Tube |
| Product Class | Wire Routing, Management & Protection |
| Package Quantity | 25 |
