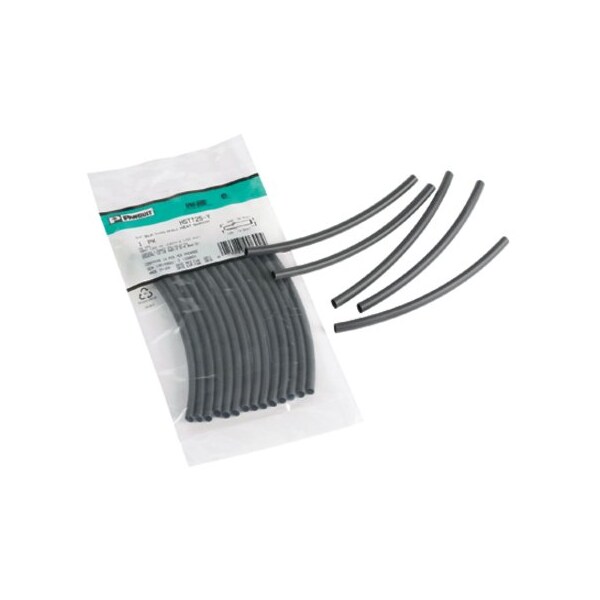

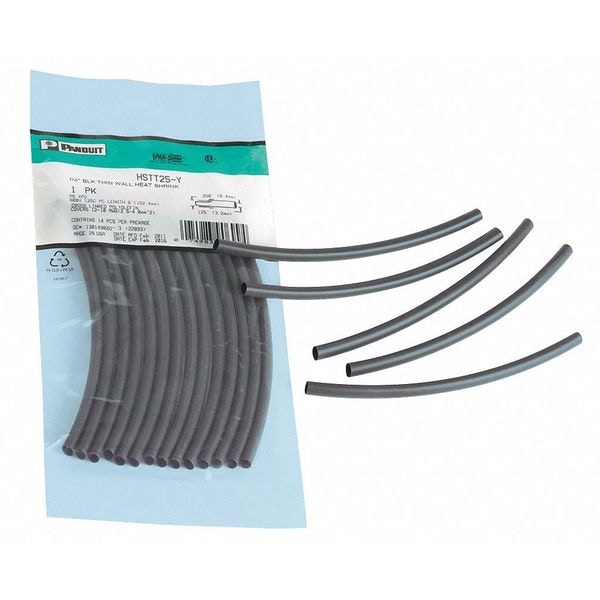

Thin Wall Heat Shrink Tubing, 0.25"
| Item | Thin Wall Heat Shrink Tubing,0.25" |
|---|---|
| Shrink Ratio | 0.084 |
| Material | Polyolefin |
| Color | Black |
| Length | 6 in |
| Application | For Dry Locations |
| Overall Length | 6 in |
| Product Type | Heat Shrink |
| Overall Length (In.) | 6 |
| Shrink Temperature (°C) | 90 |
| Shrink Temperature (°F) | 194 |
| Minimum Operating Temperature (°C) | -55 |
| Overall Length (m) | 0.1524 |
| Maximum Recovered Inside Diameter (In.) | 0.125 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Expanded Inside Diameter (In.) | 0.25 |
| Minimum Expanded Inside Diameter (mm) | 6.4 |
| Nominal Diameter (mm) | 6.4 |
| Overall Length (ft.) | 0.5 |
| Maximum Recovered Inside Diameter (mm) | 3.2 |
| Nominal Recovered Wall Thickness (In.) | 0.025 |
| Nominal Recovered Wall Thickness (mm) | 0.6 |
| Resistance Properties | Heat-Resistant |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 0.25 |
| Maximum Operating Temperature (°C) | 135 |
| Overall Length (mm) | 152.4 |
| Product Material | Polyolefin |
| Product Name | Cable Protector Heat Shrink Tube |
| Product Color | Black |
| Cable Manager Type | Heat Shrink Tube |
| Product Class | Wire Routing, Management & Protection |
| Package Quantity | 1 |
