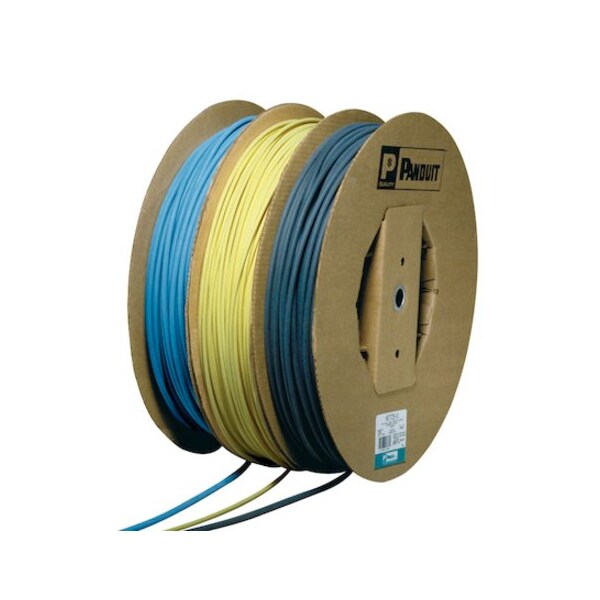

Thin Wall Heat Shrink Tubing, 1", 100ft L
| Item | Thin Wall Heat Shrink Tubing,1",100ft L |
|---|---|
| Shrink Ratio | 0.084 |
| Material | Flame retardant polyolefin cross-linked except clear |
| Color | Yellow/Green |
| Length | 100 ft |
| Application | For Dry Locations |
| Nominal Recovered Wall Thickness (mm) | 0.9 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°F) | -67 |
| Overall Length (m) | 30.5 |
| Shrink Temperature (°C) | 90 |
| Maximum Recovered Inside Diameter (mm) | 12.7 |
| Overall Length (In.) | 1,200 |
| Overall Length (ft.) | 100 |
| Maximum Recovered Inside Diameter (In.) | 0.5 |
| Nominal Recovered Wall Thickness (In.) | 0.035 |
| Nominal Diameter (In.) | 1 |
| Overall Length (mm) | 30,480 |
| Nominal Diameter (mm) | 25.4 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Expanded Inside Diameter (In.) | 1 |
| Minimum Expanded Inside Diameter (mm) | 25.4 |
| Product Type | Heat Shrink |
| Maximum Operating Temperature (°C) | 135 |
| Shrink Temperature (°F) | 194 |
| Cable Manager Type | Heat Shrink Tube |
| Product Color | Yellow, Green |
| Product Name | Cable Protector Heat Shrink Tube |
| Product Material | Polyolefin |
| Product Class | Wire Routing, Management & Protection |
| Package Quantity | 1 |
