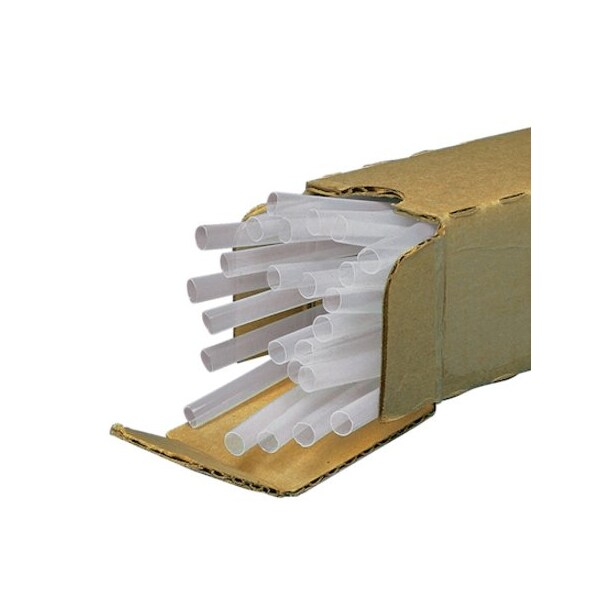

Thin Wall Heat Shrink Tubing, 18 AWG, PK25
| Item | Thin Wall Heat Shrink Tubing,18 AWG,PK25 |
|---|---|
| Shrink Ratio | 0.084 |
| Material | Polytetrafluoroethylene (TFE) |
| Color | Milky Clear |
| Length | 48 in |
| Application | For Dry Locations; Insulating and protecting wires and cables |
| Nominal Recovered Wall Thickness (mm) | 0.3 |
| Shrink Temperature (°C) | 340 |
| Nominal Recovered Wall Thickness (In.) | 0.012 |
| Shrink Temperature (°F) | 644 |
| Minimum Operating Temperature (°F) | -88 |
| Overall Length (ft.) | 4 |
| Overall Length (m) | 1.2 |
| Maximum Recovered Inside Diameter (mm) | 1.2 |
| Product Type | Heat Shrink |
| Maximum Recovered Inside Diameter (In.) | 0.049 |
| Nominal Diameter (In.) | 0.076 |
| Nominal Diameter (mm) | 1.9 |
| Overall Length (In.) | 48 |
| Overall Length (mm) | 1,219.2 |
| Minimum Expanded Inside Diameter (mm) | 1.9 |
| Maximum Operating Temperature (°F) | 482 |
| Minimum Operating Temperature (°C) | -67 |
| Resistance Properties | Chemical Resistant; Non-Flammable; UV Resistant; |
| Nominal Diameter (AWG) | 18 |
| Maximum Operating Temperature (°C) | 250 |
| Minimum Expanded Inside Diameter (In.) | 0.076 |
| Cable Manager Type | Heat Shrink Tube |
| Product Name | Cable Protector Heat Shrink Tube |
| Product Material | Polytetrafluoroethylene |
| Product Color | Clear |
| Product Class | Wire Routing, Management & Protection |
| Package Quantity | 25 |
