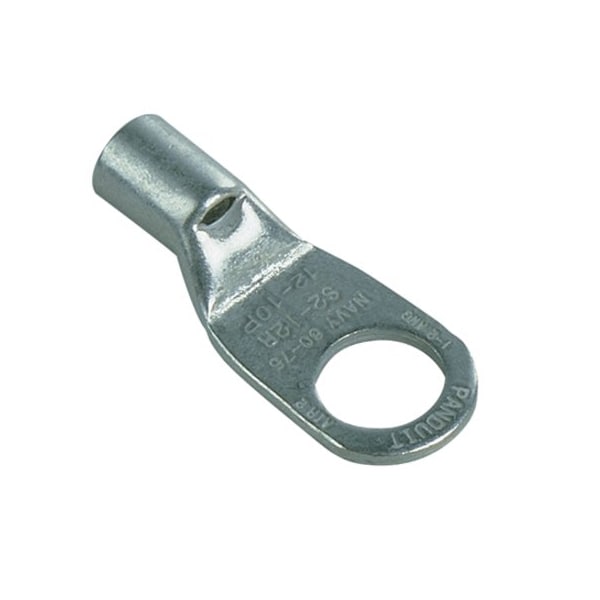

Tub Ring Term, N-Ins, 1, 2Awg, 1/4Stud, PK200
| Cable Size | 2 AWG and 1 AWG |
|---|---|
| Connector Type | Seamless Tubular Barrel |
| Width | 0.7 in |
| Material | Tin-Plated Copper |
| Length | 1.6 in |
| Item | Loose Piece Ring Terminal |
| Overall Length | 1.6 in |
| Barrel Type | Seamless Tubular |
| Tongue Thickness (In.) | 0.11 |
| Barrel Length (mm) | 15 |
| Overall Length (In.) | 1.6 |
| Wire Strip Length (mm) | 15.875 |
| Maximum Wire Size (AWG) | 1 - 2 AWG |
| Overall Width (mm) | 17.8 |
| Barrel Length (In.) | 0.59 |
| Base Material | Copper |
| Wire Strip Length (In.) | 45,054 |
| Insulation Material | Non-Insulated |
| Overall Width (In.) | 0.7 |
| Tongue Width (mm) | 17.8 |
| Tongue Thickness (mm) | 2.8 |
| Product Type | Loose Piece Ring Terminal |
| Overall Length (mm) | 40.6 |
| Tongue Width (In.) | 0.7 |
| Stud Hole Size (In.) | 44,930 |
| Finish/Coating | Tinned |
| Connector Details | 1 x Ring Terminal |
| Product Name | Terminal Connector |
| Product Color | Metallic |
| Product Material | Copper |
| Connector Plating | Tin |
| Product Class | Wire Termination |
| Package Quantity | 200 |
