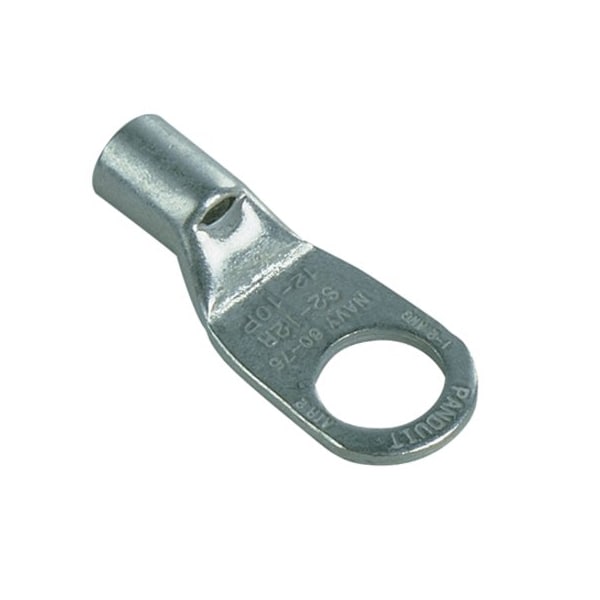

Tub Ring Term, N-Ins, 2/0Awg, 1/2Stud, PK100
| Cable Size | 2/0 AWG |
|---|---|
| Connector Type | Seamless Tubular Barrel |
| Width | 0.85 in |
| Material | Tin-Plated Copper |
| Length | 2.1 in |
| Item | Loose Piece Ring Terminal |
| Overall Length | 2.1 in |
| Stud Hole Size (In.) | 1 to 2 |
| Overall Width (In.) | 0.85 |
| Base Material | Copper |
| Barrel Length (In.) | 0.66 |
| Maximum Wire Size (AWG) | 2/0 AWG |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (mm) | 53.3 |
| Wire Strip Length (In.) | 45,246 |
| Overall Length (In.) | 2.1 |
| Tongue Thickness (In.) | 0.13 |
| Insulation Material | Non-Insulated |
| Wire Strip Length (mm) | 17.4625 |
| Barrel Type | Seamless Tubular |
| Overall Width (mm) | 21.6 |
| Finish/Coating | Tinned |
| Product Type | Loose Piece Ring Terminal |
| Tongue Width (In.) | 0.85 |
| Tongue Width (mm) | 21.6 |
| Barrel Length (mm) | 16.8 |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Product Color | Metallic |
| Connector Details | 1 x Ring Terminal |
| Product Class | Wire Termination |
| Package Quantity | 100 |
