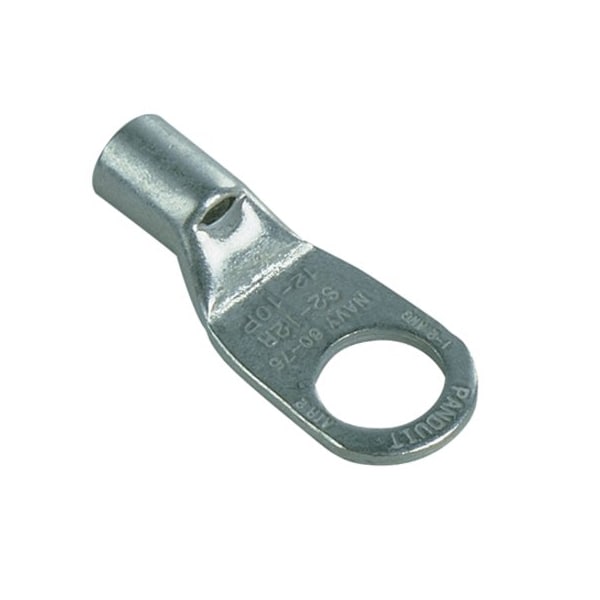

Anillo para tubo, terminal sin aislamiento, calibre 6, espárrago de 5/16, paquete con 200 piezas.
| Cable Size | 6 AWG |
|---|---|
| Connector Type | Seamless Tubular Barrel |
| Width | 0.56 in |
| Material | Tin-Plated Copper |
| Length | 1.4 in |
| Item | Loose Piece Ring Terminal |
| Color | Metallic |
| Overall Length | 1.4 in |
| Connection Type | 1 x Ring Terminal |
| Connection Material | Tin |
| Product Type | Loose Piece Ring Terminal |
| Overall Width (mm) | 14.224 |
| Tongue Width (mm) | 14.2 |
| Base Material | Copper |
| Maximum Wire Size (AWG) | 6 AWG |
| Finish/Coating | Tinned |
| Insulation Material | Non-Insulated |
| Stud Hole Size (In.) | 45,062 |
| Overall Length (mm) | 35.6 |
| Overall Width (In.) | 0.56 |
| Wire Strip Length (mm) | 12.7 |
| Barrel Length (mm) | 12.2 |
| Barrel Type | Seamless Tubular |
| Tongue Thickness (mm) | 1.8 |
| Tongue Width (In.) | 0.56 |
| Overall Length (In.) | 1.4 |
| Wire Strip Length (In.) | 1 to 2 |
| Barrel Length (In.) | 0.48 |
| Tongue Thickness (In.) | 0.07 |
| Product Name | Terminal Connector |
| Product Color | Metallic |
| Connector Details | 1 x Ring Terminal |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Class | Wire Termination |
| Package Quantity | 200 |
