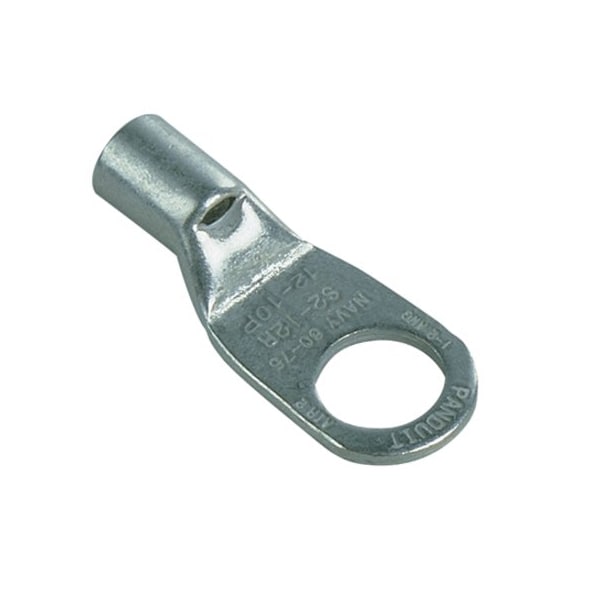

Anillo de tubo de terminal, Aislante-N, 8 AWG, 1/4 pulgadas de perno, paquete de 200.
| Cable Size | 8 AWG |
|---|---|
| Connector Type | Seamless Tubular Barrel |
| Width | 0.48 in |
| Material | Tin-Plated Copper |
| Length | 1.2 in |
| Item | Loose Piece Ring Terminal |
| Overall Length | 1.2 in |
| Overall Length (In.) | 1.2 |
| Tongue Width (In.) | 0.48 |
| Barrel Length (mm) | 10.2 |
| Tongue Thickness (In.) | 0.07 |
| Wire Strip Length (mm) | 11.1125 |
| Tongue Width (mm) | 12.2 |
| Overall Width (mm) | 12.192 |
| Insulation Material | Non-Insulated |
| Base Material | Copper |
| Finish/Coating | Tinned |
| Stud Hole Size (In.) | 44,930 |
| Product Type | Loose Piece Ring Terminal |
| Overall Width (In.) | 0.48 |
| Maximum Wire Size (AWG) | 8 AWG |
| Tongue Thickness (mm) | 1.8 |
| Barrel Length (In.) | 0.4 |
| Barrel Type | Seamless Tubular |
| Overall Length (mm) | 30.5 |
| Wire Strip Length (In.) | 45,123 |
| Product Color | Metallic |
| Connector Plating | Tin |
| Connector Details | 1 x Ring Terminal |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Product Class | Lugs |
| Package Quantity | 200 |
