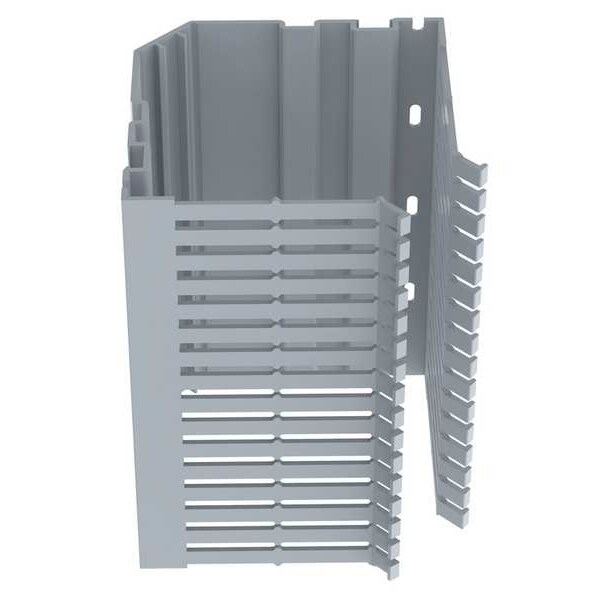

Wire Duct, Corner Duct, Gray, 5.33W x 4D
| Item | Corner Wiring Duct |
|---|---|
| Mounting Style | Screw Mount |
| Wall Type | Slotted |
| Color | Gray |
| Material | Lead-Free PVC |
| Length | 72 in |
| Width | 5-5/16 in |
| Height | 4-9/16 in |
| Slot Height | 3.6 in |
| Slot Width | 0.2 in |
| Slot-to-Slot Centerline | 1/2 in |
| Standards | CE Compliant, CSA Certified, RU Certified |
| Length (Straight Wireway) | 6 ft |
| Compatible Cover Style | Snap-On |
| Overall Height (mm) | 115.7 |
| Cover Part Number | C2LG6 |
| Product Type | Base Wiring Duct |
| Overall Length (m) | 1.8 |
| Measurement System | Imperial |
| Includes | Base Only |
| Mount Method | Mounting Holes |
| Overall Length (ft.) | 6 |
| Overall Width (In.) | 5.33 |
| Slot Width (In.) | 0.2 |
| Overall Height (In.) | 4.58 |
| Flammability Rating | UL94 V-0 |
| Slot Width (mm) | 5 |
| Application | Corner Wiring Duct is Used in the Vertical Corners of Compact to Large Electrical Control Panels (With Both Side and Back Panels) to Route, Conceal, and Protect Electrical Wiring |
| Wiring Duct Style | Corner Wiring Duct |
| Overall Width (mm) | 135.3 |
| Product Model | CWD4LG6 |
| Environmentally Friendly | Yes |
| Certifications & Standards | CSA |
| Product Color | Light Gray |
| Additional Information | Quick mount clips engage anywhere along the product base further reducing assembly costs. |
| Product Material | Polyvinyl Chloride |
| Cable Manager Type | Duct |
| Product Name | CWD4LG6 Corner Wiring Duct Base |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Sub Brand | PanelMaxâ„¢ |
| Package Quantity | 1 |
