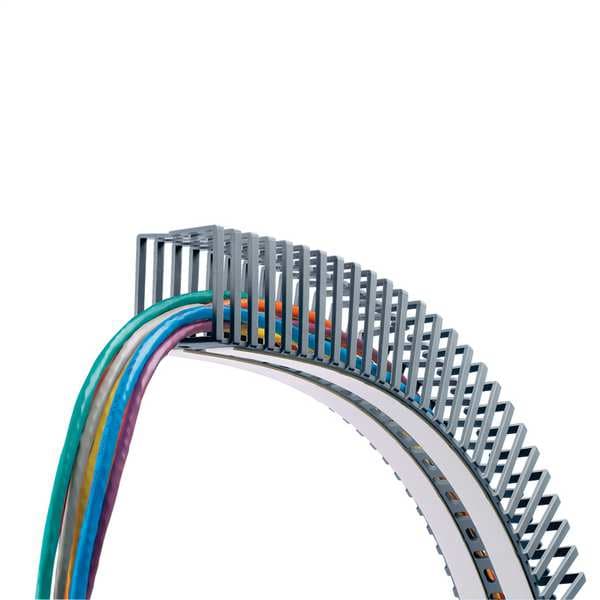

Wire Duct, Hinging, Gray, L 1.64 Ft, PK5
| Item | Wiring Duct |
|---|---|
| Mounting Style | Screw Mount |
| Wall Type | Slotted |
| Color | Gray |
| Material | Polypropylene |
| Length | 19.7 in |
| Width | 1/2 in |
| Height | 1/2 in |

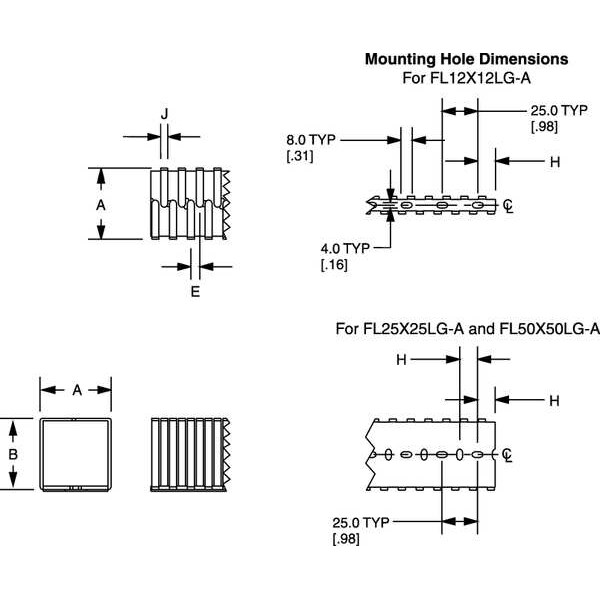

| Slot Height | 0.2 in |
| Slot Width | 0.2 in |
| Slot-to-Slot Centerline | 0.3 in |
| Standards | CSA Certified, RU Certified, UL 94V-2 |
| Length (Straight Wireway) | 1.64 ft |
| Nominal Height | 1/2 in |
| Nominal Width | 1/2 in |
| Compatible Cover Style | Snap-On |
| Length (mm) | 500 |
| Length (ft.) | 1.64 |
| CSA Certified | Yes |
| Mounting Method | Pressure Sensitive Adhesive Tape |
| Note | Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation. |
| Adhesive Mounting Tape | Yes |
| Height (In.) | 0.49 |
| Duct Size W x H (In.) | 0.49 x 0.49 |
| Width (mm) | 12.5 |
| Duct Size W x H (mm) | 12.5 x 12.5 |
| Length (In.) | 19.7 |
| Width (In.) | 0.49 |
| Height (mm) | 12.5 |
| Product Name | Open Finger Design Wiring Duct |
| Product Type | Cable Routing |
| Product Color | Light Gray |
| Cable Manager Type | Cable Duct |
| Certifications & Standards | RoHS |
| Product Material | Polypropylene |
| Package Quantity | 5 |
