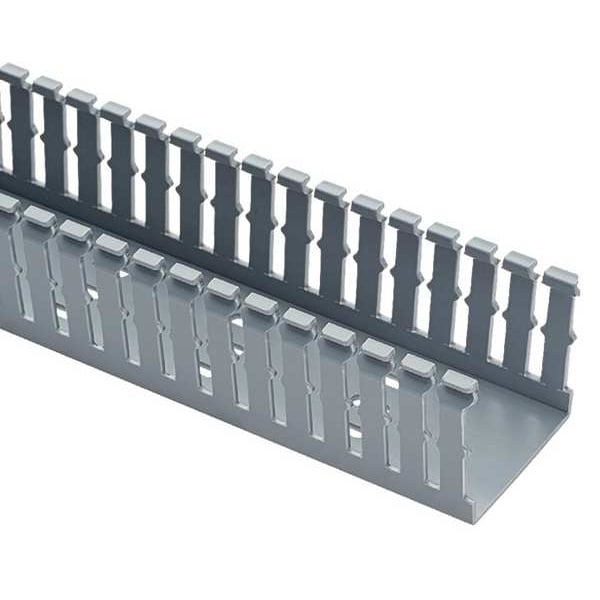

Wire Duct, Narrow Slot, Gray, 1.75W x 1.5D
| Item | Wiring Duct |
|---|---|
| Mounting Style | Screw Mount, Adhesive Back |
| Wall Type | Slotted |
| Color | Gray |
| Material | Lead-Free PVC |
| Length | 72 in |
| Width | 1-3/4 in |
| Height | 1-1/8 in |
| Slot Height | 0.6 in |
| Slot Width | 0.2 in |
| Slot-to-Slot Centerline | 1/2 in |
| Standards | CE Compliant, RoHS, UL Listed |
| Length (Straight Wireway) | 6 ft |
| Compatible Cover Style | Snap-On |
| Nominal Height | 1-1/2 in |
| Nominal Width | 1-1/2 in |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Overall Width (In.) | 1-3/4 |
| Overall Length (ft.) | 6 |
| Wiring Duct Type | F |
| Measurement System | Imperial |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Slot Width (mm) | 5 |
| Overall Width (mm) | 44.5 |
| Slot Width (In.) | 0.2 |
| Mount Method | Mounting Holes with Adhesive |
| Note | Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation |
| Includes | Base Only |
| Cover Part Number | C1.5LG6 |
| Product Type | Base Wiring Duct |
| Overall Length (m) | 1.8 |
| Overall Height (mm) | 41.1 |
| Flammability Rating | UL94 V-0 |
| Overall Height (In.) | 1.62 |
| Product Color | Light Gray |
| Product Line | Panduct |
| Additional Information | Thickness: 0.07" |
| Certifications & Standards | CSA |
| Product Name | 6ft Panduct Type F - Narrow Slot Wiring Duct |
| Cable Manager Type | Cable Duct |
| Product Material | Polyvinyl Chloride |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Sub Brand | Panduct® |
| Package Quantity | 1 |
