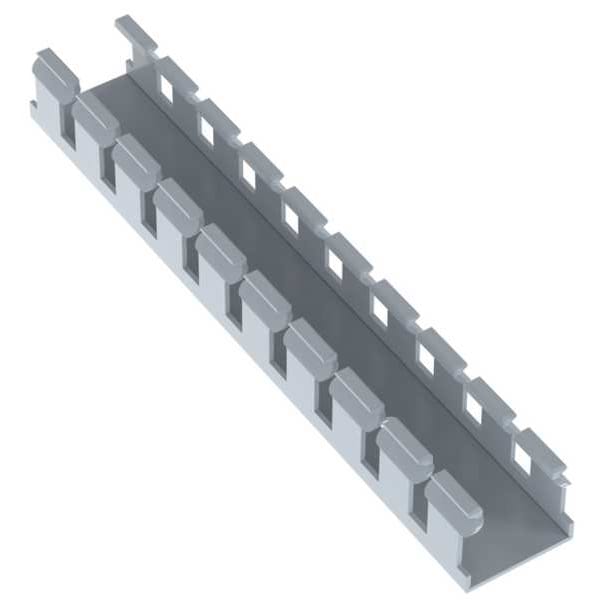

Wire Duct, Wide Slot, Gray, 1.26 W x 1 D
| Item | Wiring Duct |
|---|---|
| Wall Type | Slotted |
| Mounting Style | Screw Mount |
| Color | Gray |
| Material | Lead-Free PVC |
| Length | 72 in |
| Width | 1-1/4 in |
| Height | 1-1/8 in |
| Slot Height | 1/2 in |
| Slot Width | 0.3 in |
| Slot-to-Slot Centerline | 0.8 in |
| Standards | CE Compliant, CSA Certified, NFPA 79-2015 Section 13.3.1, RU Certified, UL Listed, UL 94V-0 |
| Length (Straight Wireway) | 6 ft |
| Compatible Cover Style | Snap-On |
| Nominal Height | 1 in |
| Nominal Width | 1 in |
| Flammability Rating | UL94 V-0 |
| Measurement System | Imperial |
| Overall Length (m) | 1.8 |
| Overall Length (ft.) | 6 |
| Cover Part Number | C1LG6 |
| Overall Width (In.) | 1-1/4 |
| Slot Width (mm) | 7.9 |
| Wiring Duct Type | G |
| Overall Height (In.) | 1.12 |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Slot Width (In.) | 0.31 |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Includes | Base Only |
| Overall Height (mm) | 28.4 |
| Mount Method | Mounting Holes |
| Product Type | Cable Routing |
| Overall Width (mm) | 32 |
| Additional Information | Thickness: 0.06 inch |
| Certifications & Standards | RoHS |
| Cable Manager Type | Cable Duct |
| Product Model | Type G |
| Product Material | Polyvinyl Chloride |
| Product Line | Panduct |
| Product Name | 6ft Panduct Type G - Wide Slot Wiring Duct |
| Product Color | Light Gray |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Sub Brand | Panduct® |
| Package Quantity | 1 |
