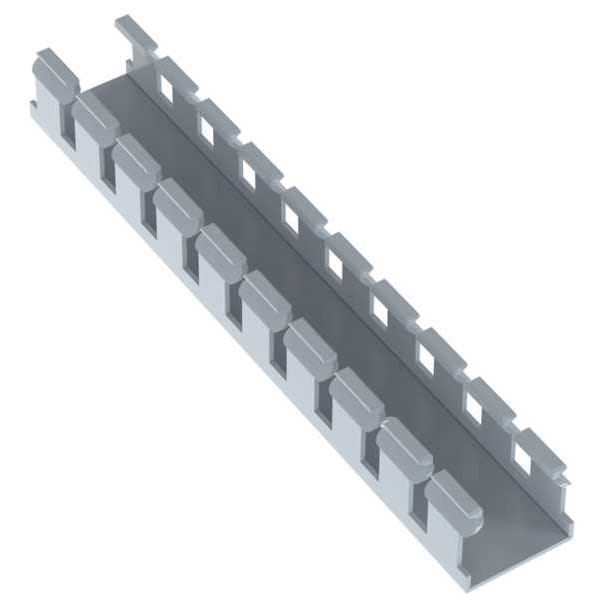

Wire Duct, Wide Slot, Gray, 1.26 W x 1 D
| Item | Wiring Duct |
|---|---|
| Mounting Style | Screw Mount, Adhesive Back |
| Wall Type | Slotted |
| Color | Gray |
| Material | Lead-Free PVC |
| Length | 72 in |
| Width | 1-1/4 in |
| Height | 1-1/8 in |
| Slot Height | 1/2 in |
| Slot Width | 0.3 in |
| Slot-to-Slot Centerline | 0.8 in |
| Standards | CE Compliant, RoHS, UL Listed |
| Length (Straight Wireway) | 6 ft |
| Nominal Height | 1 in |
| Compatible Cover Style | Snap-On |
| Nominal Width | 1 in |
| Slot Width (In.) | 0.31 |
| Product Type | Base Wiring Duct |
| Flammability Rating | UL94 V-0 |
| Wiring Duct Type | G |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Measurement System | Imperial |
| Mount Method | Mounting Holes with Adhesive |
| Overall Width (In.) | 1-1/4 |
| Slot Width (mm) | 7.9 |
| Overall Length (m) | 1.8 |
| Overall Length (ft.) | 6 |
| Cover Part Number | C1LG6 |
| Includes | Base Only |
| Overall Height (mm) | 28.4 |
| Overall Height (In.) | 1.12 |
| Note | Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation. |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Overall Width (mm) | 32 |
| Product Material | Polyvinyl Chloride |
| Product Name | 6ft Panduct Type G - Wide Slot Wiring Duct |
| Certifications & Standards | RoHS |
| Product Color | Light Gray |
| Product Model | Type G |
| Additional Information | Thickness: 0.06 inch |
| Cable Manager Type | Cable Duct |
| Product Line | Panduct |
| Sub Brand | Panduct® |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Package Quantity | 1 |
