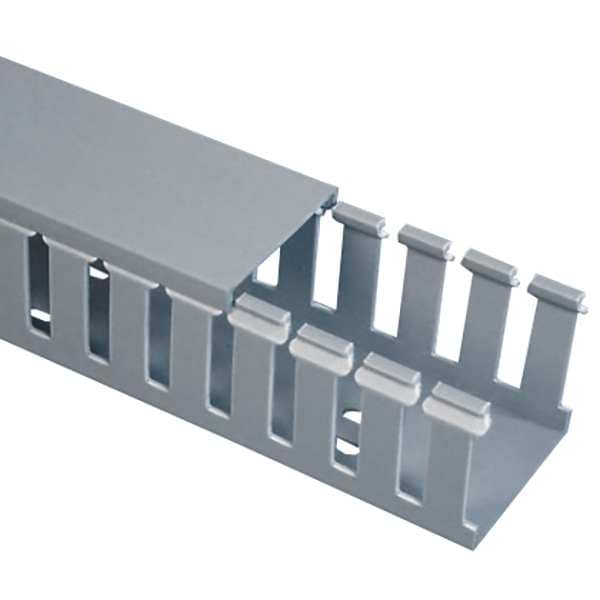

Wire Duct, Wide Slot, Gray, 1.26 W x 4 D
| Item | Wiring Duct |
|---|---|
| Wall Type | Slotted |
| Mounting Style | Screw Mount, Adhesive Back |
| Color | Gray |
| Material | Lead-Free PVC |
| Length | 72 in |
| Width | 1-1/4 in |
| Height | 4-1/8 in |
| Slot Height | 3.6 in |
| Slot Width | 0.3 in |
| Slot-to-Slot Centerline | 1 in |
| Standards | CE Compliant, RoHS, UL Listed |
| Length (Straight Wireway) | 6 ft |
| Compatible Cover Style | Snap-On |
| Nominal Height | 4 in |
| Nominal Width | 1 in |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Slot Width (In.) | 0.31 |
| Overall Width (In.) | 1-1/4 |
| Includes | Wiring Duct Base with Adhesive |
| Overall Length (m) | 1.8 |
| Product Type | Base Wiring Duct |
| Overall Height (mm) | 104.1 |
| Overall Width (mm) | 31.8 |
| Mount Method | Mounting Holes with Adhesive |
| Measurement System | Imperial |
| Wiring Duct Type | G |
| Note | Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Cover Part Number | C1LG6 |
| Overall Height (In.) | 4.1 |
| Overall Length (ft.) | 6 |
| Slot Width (mm) | 7.9 |
| Flammability Rating | UL94 V-0 |
| Product Color | Light Gray |
| Product Model | Type G |
| Product Name | 6ft Panduct Type G - Wide Slot Wiring Duct |
| Product Line | Panduct |
| Cable Manager Type | Cable Duct |
| Certifications & Standards | RoHS |
| Product Material | Polyvinyl Chloride |
| Additional Information | Thickness: 0.11 inch |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Sub Brand | Panduct® |
| Package Quantity | 1 |
