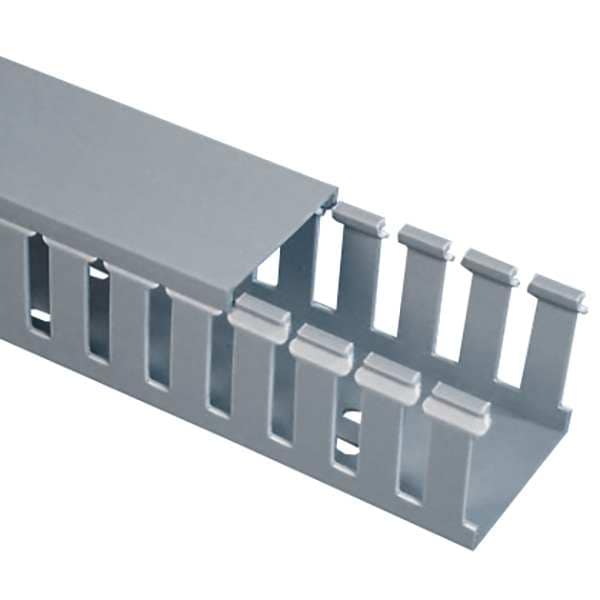

Wire Duct, Wide Slot, Gray, 4.25 W x 5 D
| Item | Wiring Duct |
|---|---|
| Wall Type | Slotted |
| Mounting Style | Screw Mount, Adhesive Back |
| Color | Gray |
| Material | Lead-Free PVC |
| Length | 72 in |
| Width | 4-1/4 in |
| Height | 5-1/8 in |
| Slot Height | 4.1 in |
| Slot Width | 0.3 in |
| Slot-to-Slot Centerline | 1.3 in |
| Standards | CE Compliant, RoHS, UL Listed |
| Length (Straight Wireway) | 6 ft |
| Compatible Cover Style | Snap-On |
| Nominal Width | 4 in |
| Nominal Height | 5 in |
| Overall Width (mm) | 108 |
| Overall Length (m) | 1.8 |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Mount Method | Mounting Holes with Adhesive |
| Overall Height (mm) | 129.5 |
| Overall Height (In.) | 5.1 |
| Overall Length (ft.) | 6 |
| Cover Part Number | C4LG6 |
| Note | Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation |
| Measurement System | Imperial |
| Wiring Duct Type | G |
| Slot Width (In.) | 0.38 |
| Flammability Rating | UL94 V-0 |
| Product Type | Base Wiring Duct |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Overall Width (In.) | 4-1/4 |
| Slot Width (mm) | 9.7 |
| Includes | Base Only |
| Additional Information | Thickness: 0.12 inch |
| Product Color | Light Gray |
| Product Model | Type G |
| Product Line | Panduct |
| Certifications & Standards | RoHS |
| Product Name | 6ft Panduct Type G - Wide Slot Wiring Duct |
| Cable Manager Type | Cable Duct |
| Product Material | Polyvinyl Chloride |
| Sub Brand | Panduct® |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Package Quantity | 1 |
