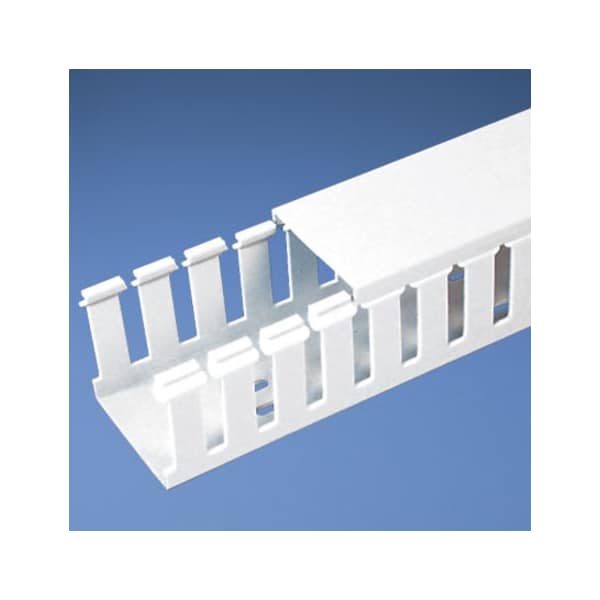

Wire Duct, Wide Slot, White, 1.26 W x 1.5 D
| Item | Wiring Duct |
|---|---|
| Mounting Style | Screw Mount |
| Wall Type | Slotted |
| Color | White |
| Material | Lead-Free PVC |
| Length | 72 in |
| Width | 1-1/4 in |
| Height | 1-5/8 in |
| Slot Height | 0.6 in |
| Slot Width | 0.3 in |
| Slot-to-Slot Centerline | 0.8 in |
| Standards | CE Compliant, RoHS, UL Listed |
| Length (Straight Wireway) | 6 ft |
| Nominal Height | 1-1/2 in |
| Compatible Cover Style | Snap-On |
| Nominal Width | 1 in |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Includes | Base Only |
| Mount Method | Mounting Holes |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Cover Part Number | C1WH6 |
| Overall Length (m) | 1.8 |
| Slot Width (mm) | 7.9 |
| Overall Width (mm) | 32 |
| Flammability Rating | UL94 V-0 |
| Overall Width (In.) | 1-1/4 |
| Measurement System | Metric |
| Overall Length (ft.) | 6 |
| Slot Width (In.) | 0.31 |
| Wiring Duct Type | G |
| Product Type | Base Wiring Duct |
| Overall Height (mm) | 41.1 |
| Overall Height (In.) | 1.62 |
| Product Material | Polyvinyl Chloride |
| Cable Manager Type | Wiring Duct |
| Product Name | Cable Guide Wiring Duct |
| Environmentally Friendly | Yes |
| Product Color | White |
| Sub Brand | Panduct® |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Package Quantity | 1 |
