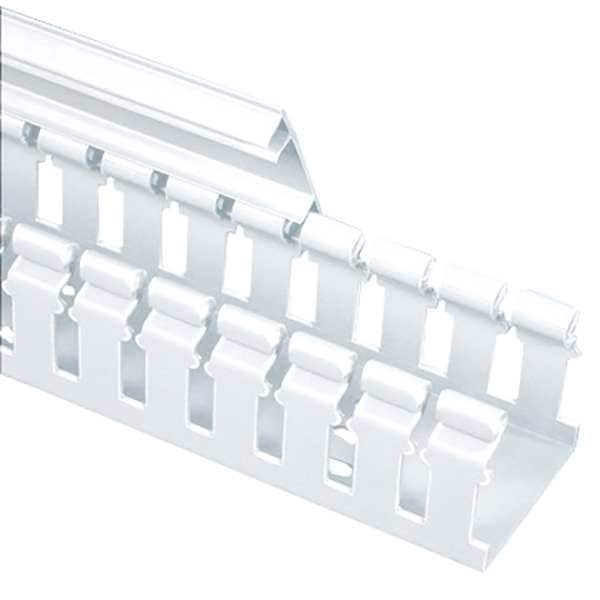

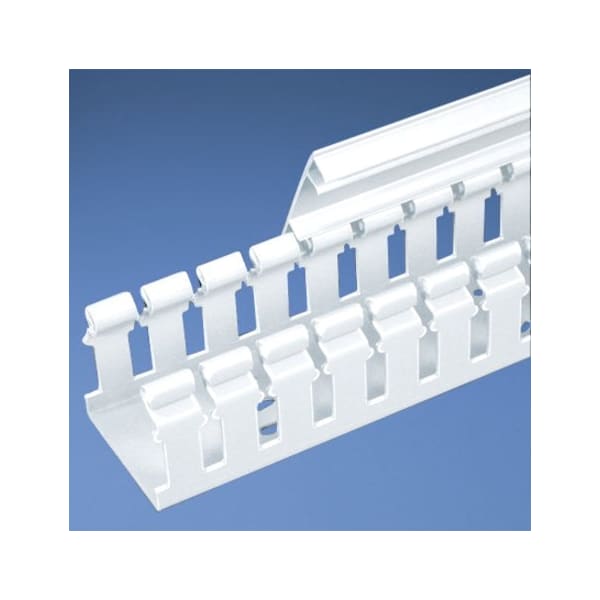

Wire Duct, Wide Slot, White, L 6 Ft
| Item | Wiring Duct for Hinged Covers |
|---|---|
| Wall Type | Slotted |
| Mounting Style | Screw Mount |
| Color | White |
| Material | PVC |
| Length | 72 in |
| Width | 3-1/4 in |
| Height | 3-1/16 in |
| Slot Height | 2.6 in |
| Slot Width | 0.3 in |
| Slot-to-Slot Centerline | 1 in |
| Standards | CE Compliant, CSA Certified, RoHS, UL 94 Flammability Rating of V-0, UL Listed |
| Length (Straight Wireway) | 6 ft |
| Nominal Height | 3 in |
| Compatible Cover Style | Hinged |
| Nominal Width | 3 in |
| Application | Hinged Cover Wide Slot Wiring Duct provides wire management in general purpose applications where it is beneficial to retain cover during wire changes |
| Includes | Base Only |
| Overall Width (mm) | 82.6 |
| Wiring Duct Type | H |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Measurement System | Imperial |
| Overall Height (mm) | 77.7 |
| Mount Method | Mounting Holes |
| Product Type | Base Wiring Duct |
| Overall Length (ft.) | 6 |
| Flammability Rating | UL94 V-0 |
| Cover Part Number | HC3WH6 |
| Slot Width (In.) | 0.31 |
| Overall Height (In.) | 3.06 |
| Overall Length (m) | 1.8 |
| Slot Width (mm) | 7.9 |
| Overall Width (In.) | 3-1/4 |
| Product Material | Polyvinyl Chloride |
| Environmentally Friendly | Yes |
| Cable Manager Type | Cover |
| Product Name | Wide Slot Wiring Duct |
| Product Color | White |
| Sub Brand | Panduct® |
| Standards Met | RoHS Compliant; cURus Recognized; CE Compliant; CSA Approved |
| Package Quantity | 1 |
