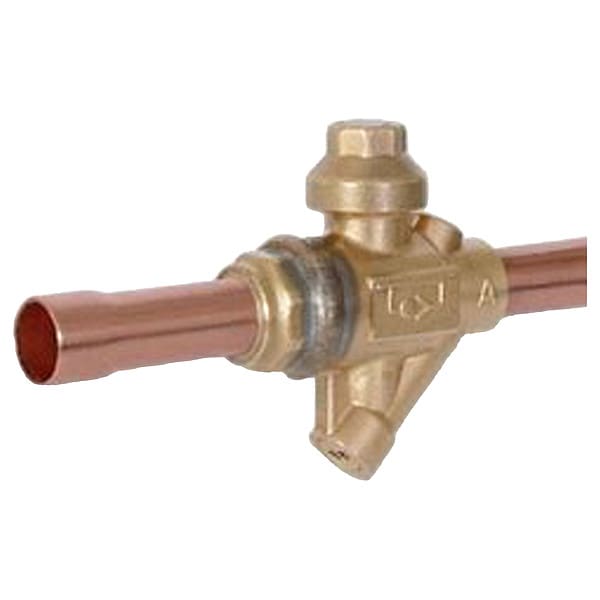

Refrigerant Ball Valve, 7/8 in, 700 psi
| Item | Refrigerant Ball Valve |
|---|---|
| Body Material | Brass |
| Standards | CE Certified, EP3295067, RoHS Compliant, U.S. Patent 10,107,406, UL Listed File No. SA5460 (SFJQ2) |
| Inlet Connection Size | 7/8 in |
| Outlet Connection Size | 7/8 in |
| Inlet Connection Gender | Female |
| Inlet Connection Type | Sweat |
| Port Size | 0.8 in |
| Overall Length | 7.3 in |
| Includes Mounting Holes | Mounting Holes Included |
| Socket Depth | 0.8 in |
| Operating Temperature - Minimum | -40 deg F |
| Overall Height | 3.6 in |
| Includes Access Port | Access Port Not Included |
| For Refrigerant Group | HCFC, HFC, HFO |
| Adjustment Method | Wrench |
| Outlet Connection Gender | Female |
| Product Type | Refrigerant Ball Valve |
| Mounting Hole Size | #8-36 to 5/16-24 |
| Operating Pressure - Maximum | 700 psi |
| Operating Temperature - Maximum | 300 deg F |
| Control Direction | Bi-Directional |
| Outlet Connection Type | Sweat |
| Mounting Hole Type | UNF |
| Includes Relief Port | Relief Port Included |
| Flow Rate - Maximum | 1.93 gpm |
| Weight | 0.7 lb |
| Coefficient of Volume (Cv) | 30.3 |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
