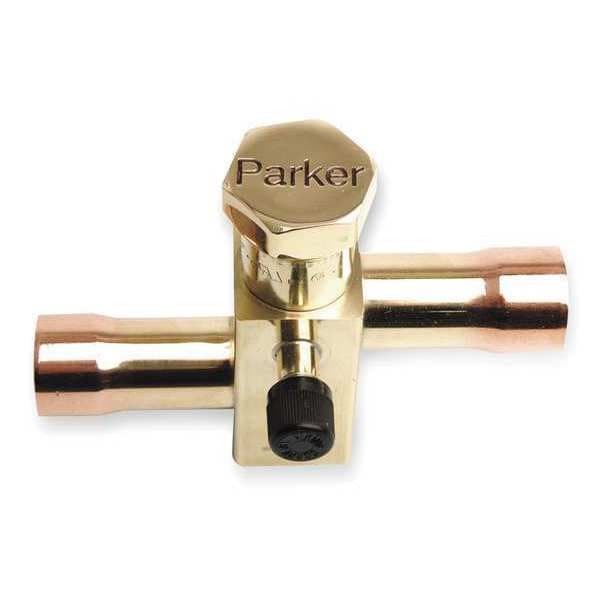

Service/Shut Off Valve, 3/8 In, Copper
| Item | Refrigerant Ball Valve |
|---|---|
| Connection Size | 3/8 in ODF |
| For Use With | R-22 Air Conditioning Condensing Units and Heat Pumps |
| Outside Dia. | 1/2 in |
| Max. Working Pressure | 750 psi |
| Includes | 1/4 in SAE Access Valve on Right Facing Field Connection |
| Operating Pressure | Vacuum to 750 psi |
| Operating Temp. Range | -40 Degrees F to +250 Degrees F |
| Style | Front Seating |
| Connection Material | Copper |
| Body Material | Brass |
| Flow | Bi-directional |
| Overall Length | 4.6 in |
| Control Direction | Bi-Directional |
| Overall Width | 1/2 in |
| Operating Temperature - Maximum | 250 deg F |
| Product Type | Refrigerant Ball Valve |
| Operating Pressure - Maximum | 750 psi |
| Base to Inlet Midpoint Distance | 0.89 in |
| Includes Mounting Holes | Mounting Holes Included |
| Mounting Hole Size | 1/4"-20 |
| Outlet Connection Size | 3/8 in |
| Operating Temperature - Minimum | -40 deg F |
| Inlet Connection Type | Sweat |
| Inlet Connection Size | 3/8 in |
| Access Port Location | Right |
| Includes Access Port | Access Port Included |
| Mounting Hole Type | UNC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
