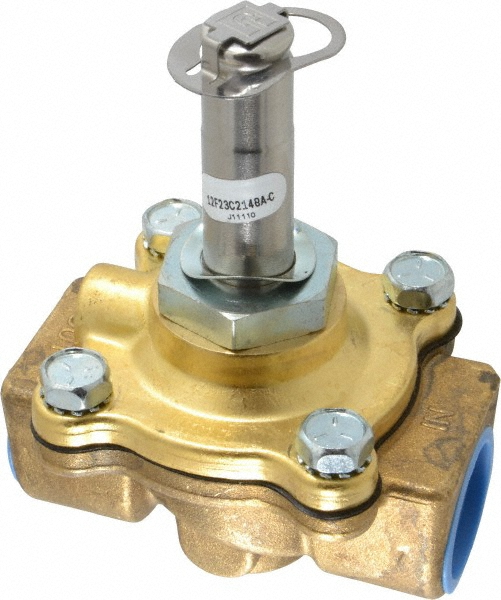

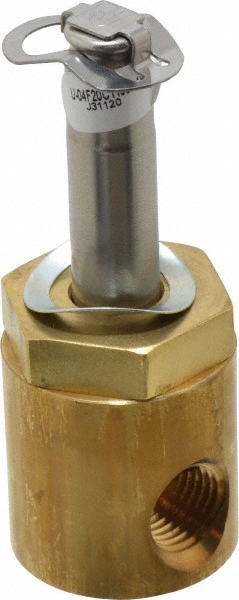

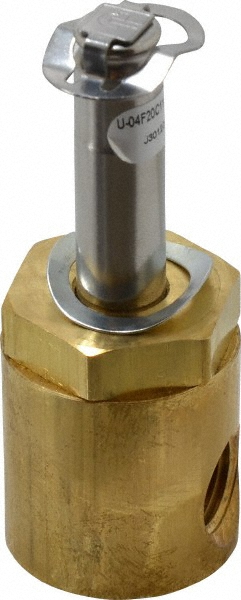

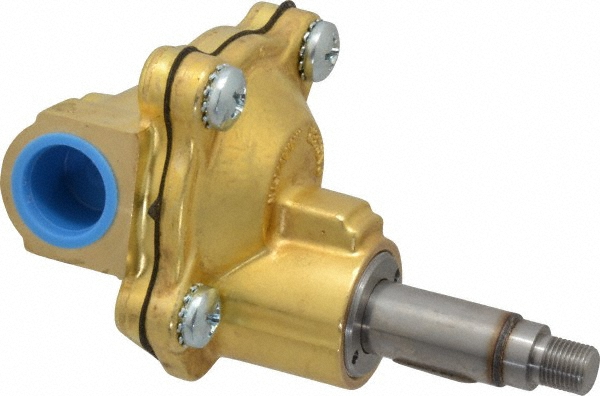

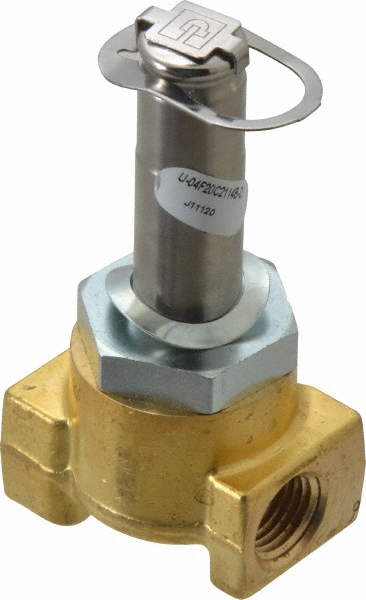

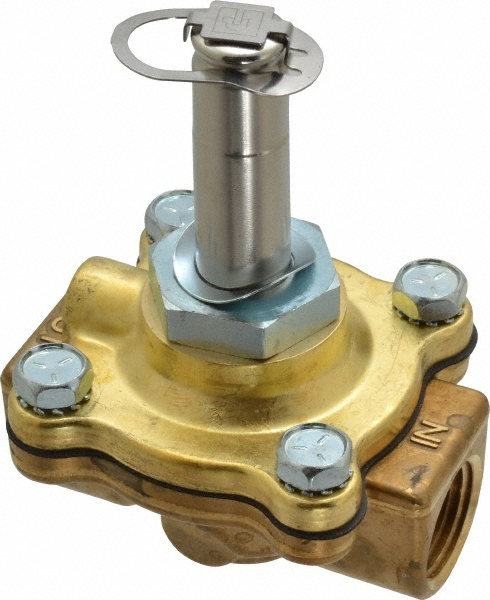

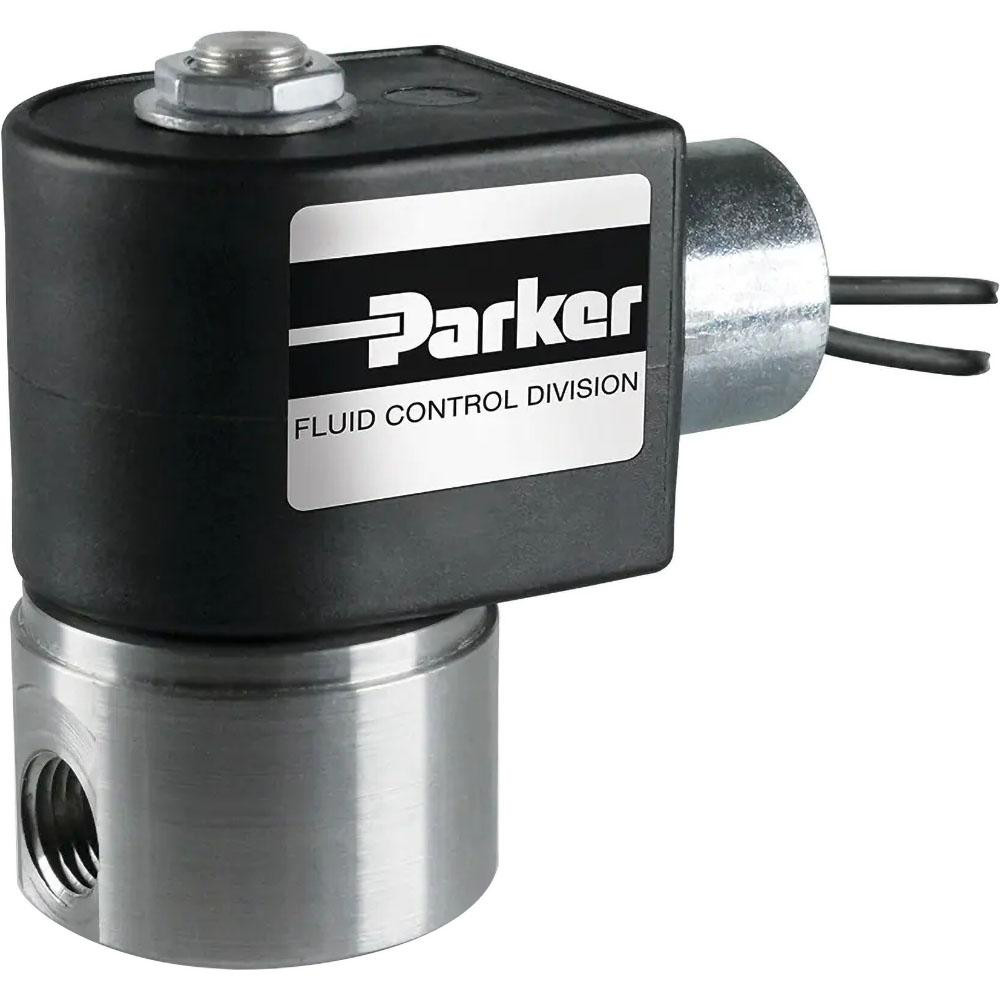

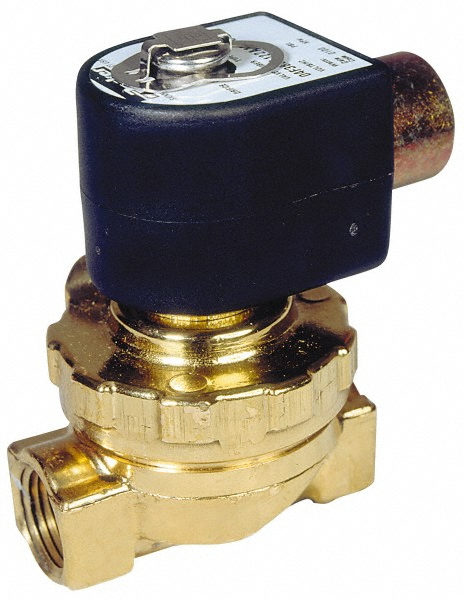

Normally Closed, Brass, NBR Seal, 12Vdc, 120Vdc, 120/60 to 110/50Vac, 24Vdc, 24/60Vac & 240/60 to 220/50Vac
| Valve Type | Direct-Acting |
|---|---|
| Port Size | 1/4 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 24/60V AC; 120V DC; 240/60-220/50V AC; 120/60-110/50V AC; 24V DC; 12V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 150 |
| Cv Factor Nc | 0.1700 |
| Overall Height (Decimal Inch) | 3.0156 |
| Orifice Size (Decimal Inch) | 0.0938 |
| Standards | UL Listed; NEMA 4X; CSA Certified |
| Coil Included | Yes |
| Special Item Information | Solenoid coils not included |
| Applications | Gases; Light Oils; Fluids |
| Wattage | 9.5 |
| ASCO Number | 8262G20 |
| Minimum Operating Pressure Differential | 0 |
| Maximum Temperature (F) ( - 0 Decimals) | 120 |
| Type Of Power | DC |
| Maximum Temperature (C) | 120 |
| UNSPSC Code | 40141605 |
| MSC Number | MSC# 68014091 |
