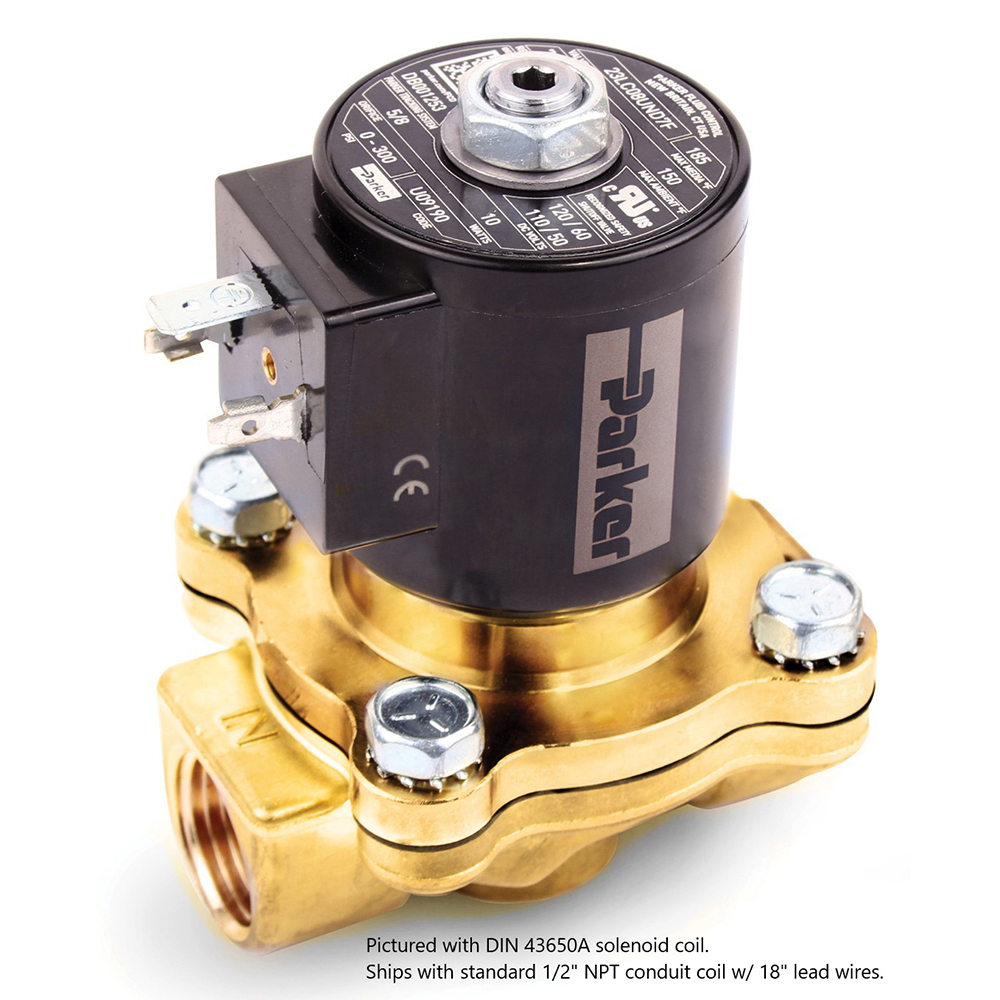

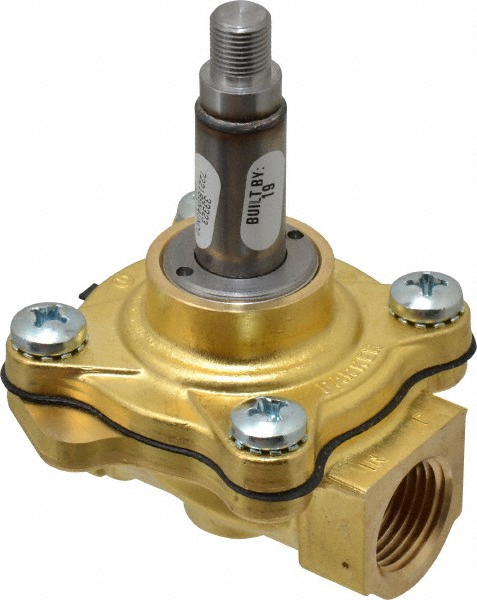

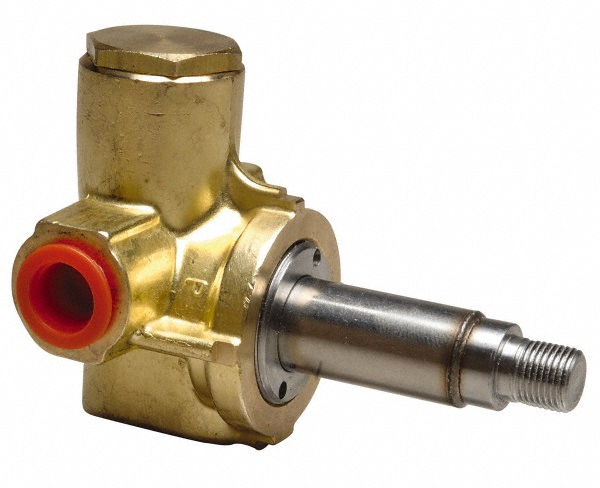

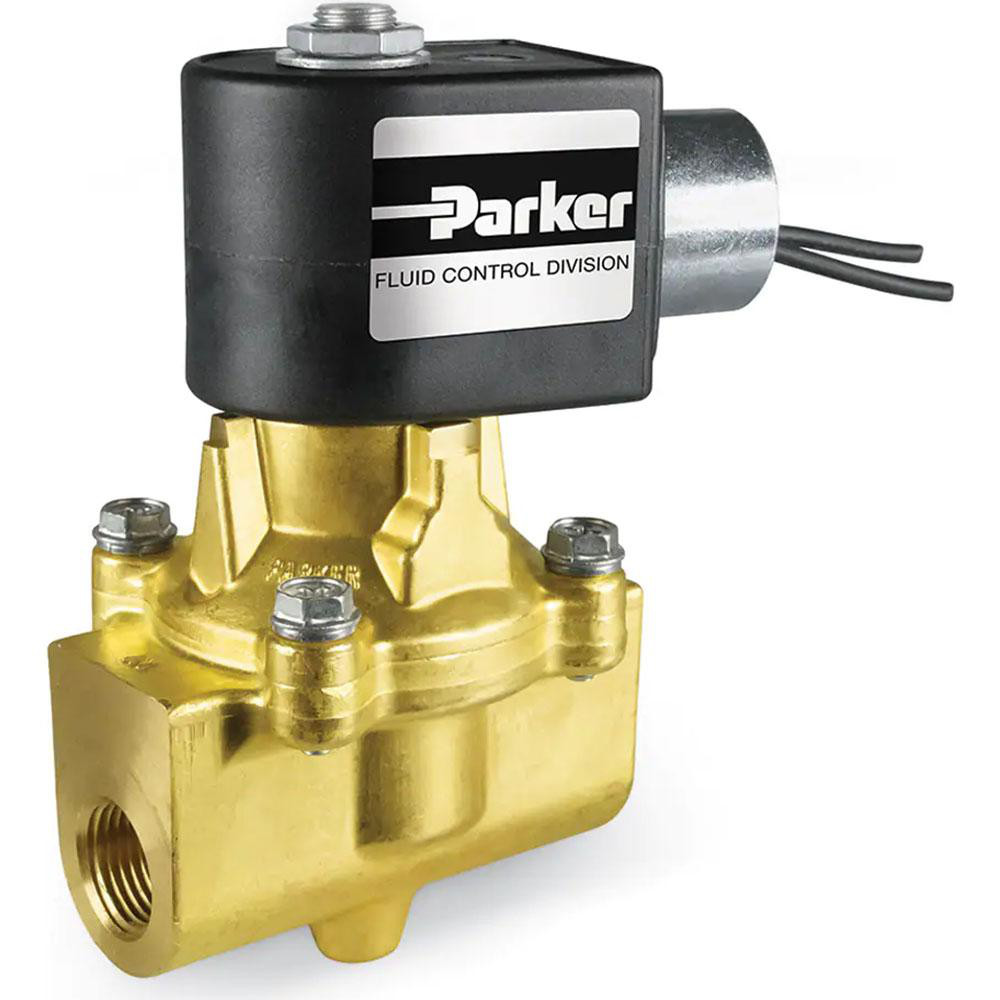

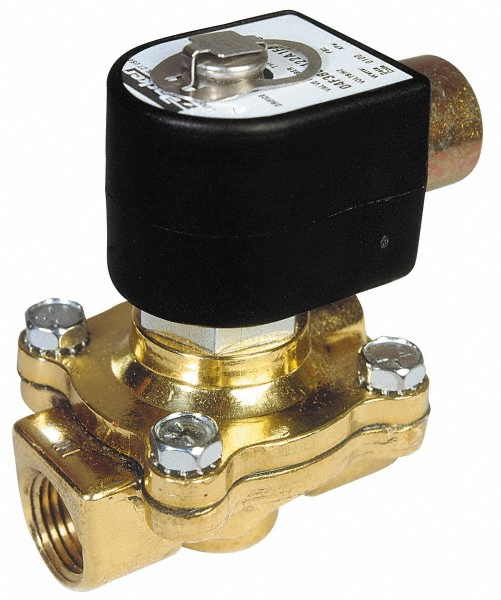

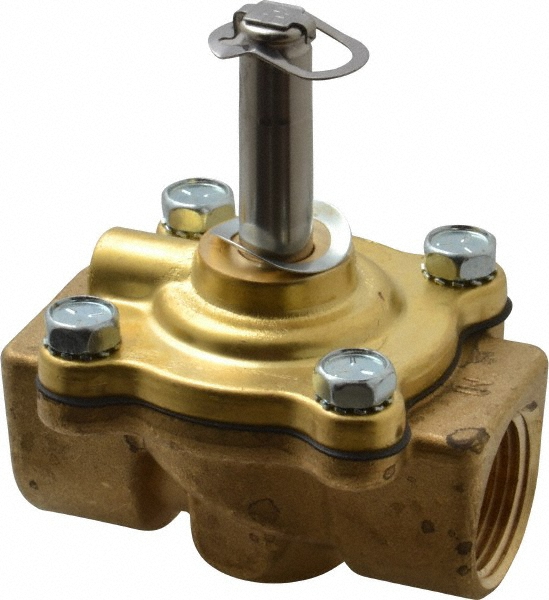

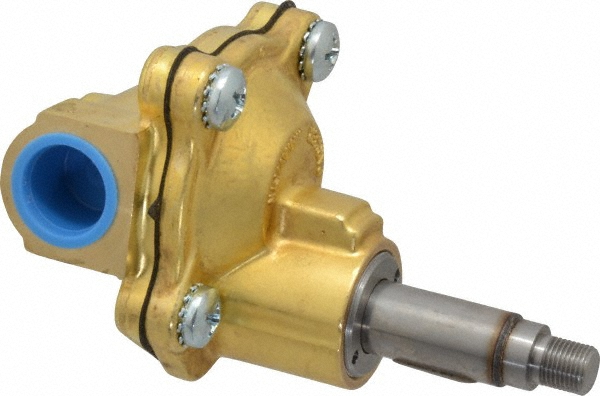

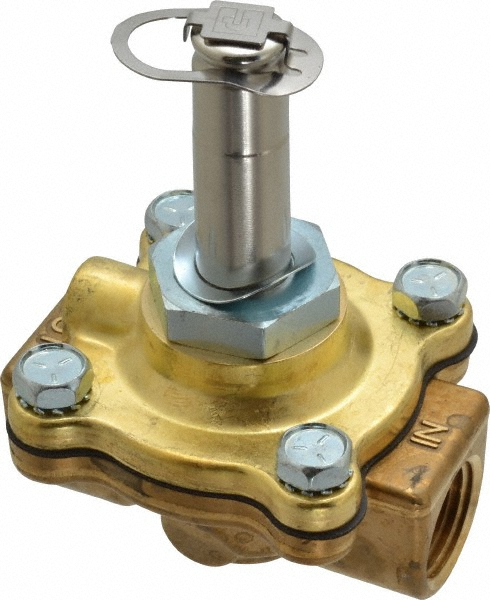

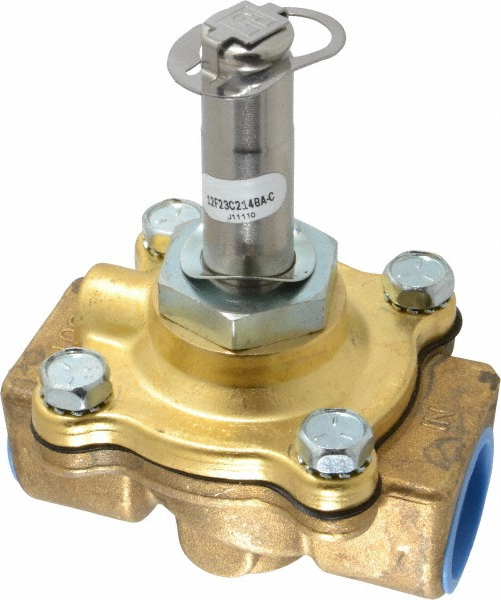

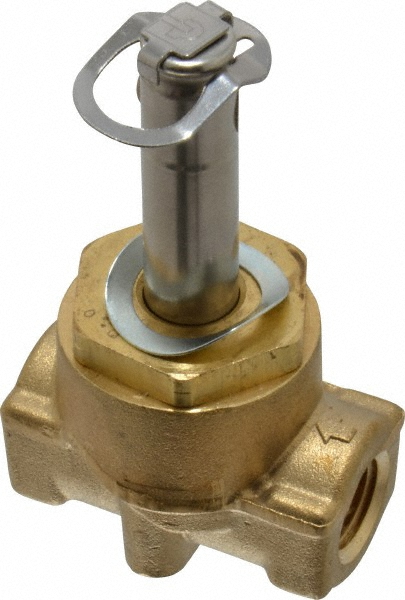

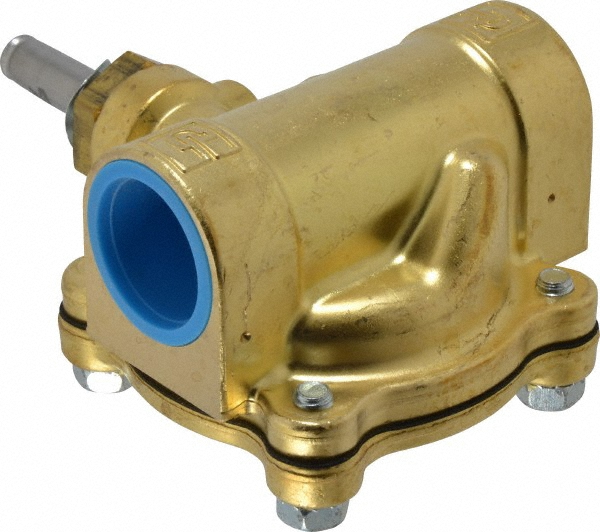

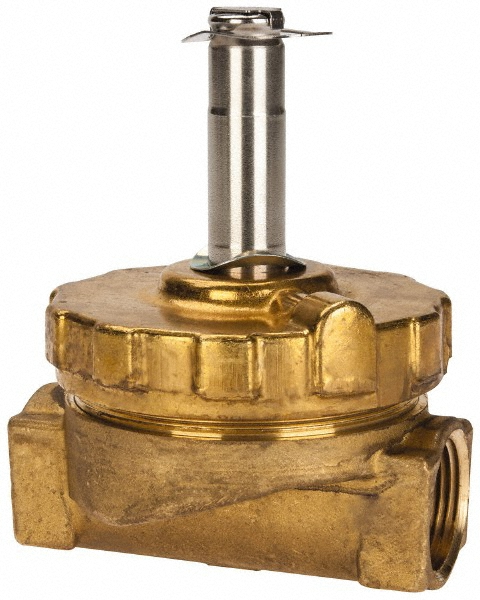

Normally Closed, Brass, NBR Seal, 24Vdc
| Valve Type | Two-Way; Two-Position |
|---|---|
| Port Size | 3/4 in |
| Valve Unactuated State | Normally Closed |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 24V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 250 |
| Orifice Size | 3/4 |
| Coil Type | H |
| Cv Rating | 5.000 |
| Wattage | 22 |
| Coil Lead Size | 1/2 NPT Conduit - 18 in Leads |
| Minimum Operating Pressure Differential | 0 |
| Type Of Power | DC |
| Type | IP 69; Wet Location |
| UNSPSC Code | 40141605 |
| MSC Number | MSC# 14358022 |
