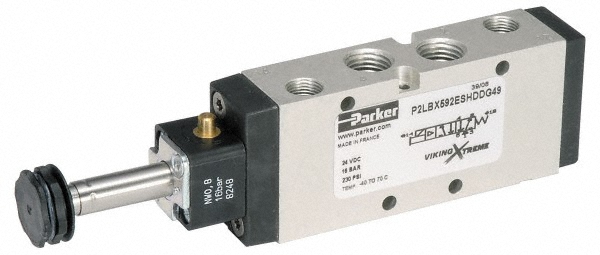

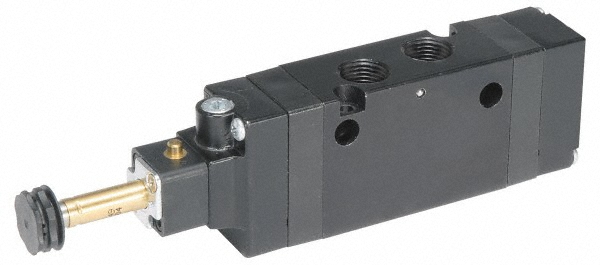

Normally Open Thru Ports 1 & 2, Aluminum, Buna-N Seal, 12Vdc & 24Vdc
| Valve Type | Internally-Piloted |
|---|---|
| Valve Way & Position | 5-Way/2-Position |
| Port Size | 1/4 in |
| Valve Unactuated State | Normally Open Thru Ports 1 & 2 |
| Thread Standard | NPT |
| Body Material | Anodized Aluminum |
| Seal Material | Nitrile |
| Maximum Working Pressure (PSI - 3 Decimals) | 232.000 |
| Cv Factor Nc | 1.3000 |
| Overall Height (Decimal Inch) | 1.5700 |
| Overall Length (Decimal Inch) | 6.1400 |
| Standards | CE Marked; RoHS Compliant |
| Inlet Size | 1/4 in |
| Cv Rating | 1.300 |
| Minimum Working Pressure (psi) | 51 |
| Special Item Information | Pilot Exhaust Vented; Extended Non-Locking Override Function; Viking Xtreme Series |
| Applications | Pneumatics |
| Width (Decimal Inch - 4 Decimals) | 0.8700 |
| Maximum Temperature (F) ( - 0 Decimals) | 140 |
| Type Of Power | Single Acting |
| Minimum Temperature (Deg F - 3 Decimals) | -40 |
| Type | IP 65 |
| Maximum Temperature (C) | 60 |
| Minimum Temperature (C - 2 Decimals) | -40 |
| UNSPSC Code | 40141605 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 91209007 |
