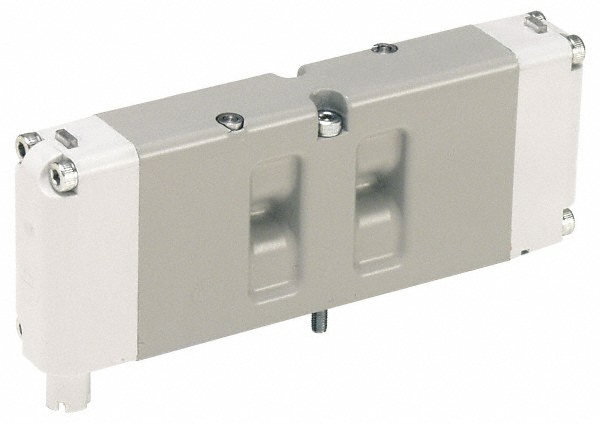

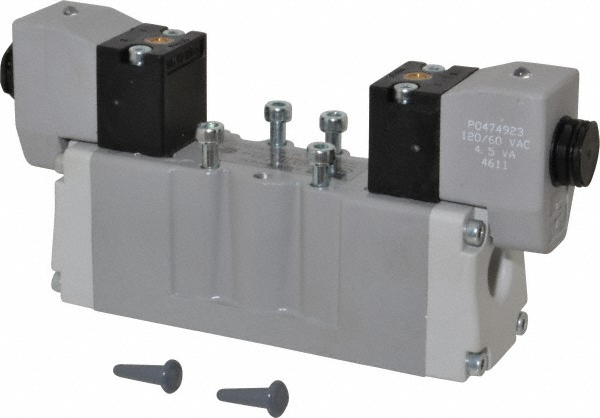

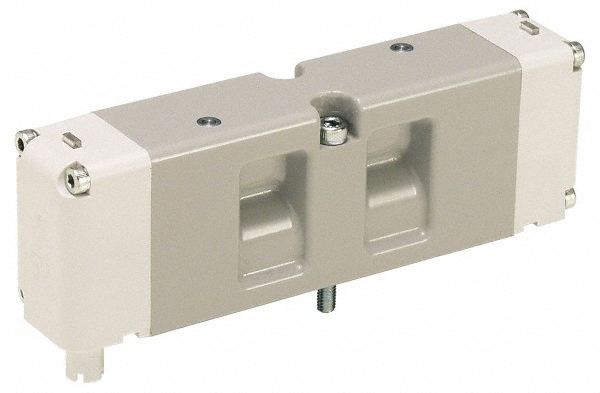

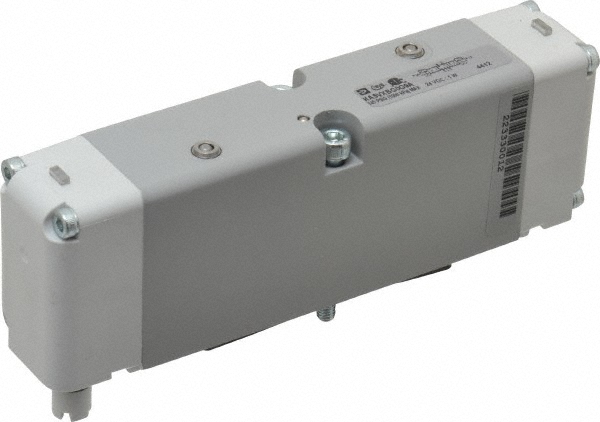

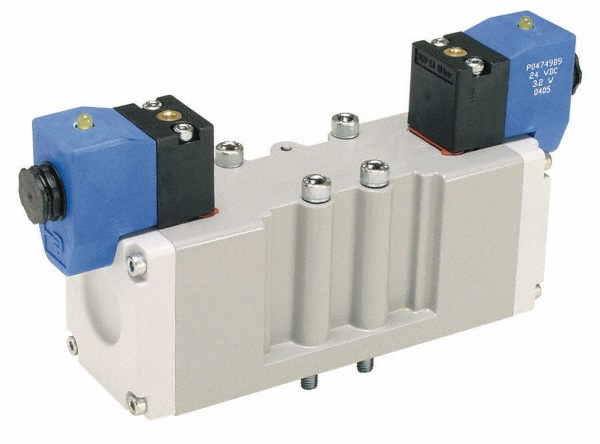

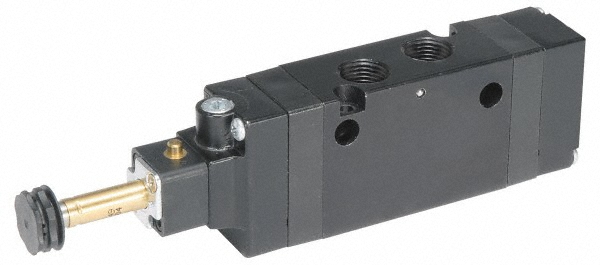

Normally Open Thru Ports 1 & 2, Aluminum, Nitrile Seal, 120Vac
| Valve Type | Internally-Piloted |
|---|---|
| Valve Way & Position | 4-Way/2-Position |
| Valve Configuration | Manifold Mount |
| Port Size | 3/4 in |
| Valve Unactuated State | Normally Open Thru Ports 1 & 2 |
| Thread Standard | BSPP |
| Body Material | Aluminum |
| Seal Material | Nitrile |
| Voltage | 120 V |
| Maximum Working Pressure (PSI - 3 Decimals) | 145.000 |
| Cv Factor Nc | 6.0000 |
| Overall Height (Decimal Inch) | 4.0500 |
| Overall Length (Decimal Inch) | 8.6800 |
| Standards | ISO 1179 Specifications; cCSAus Approved; BSPP Manifold & Subbase Ports Meet |
| Inlet Size | 3/4 in |
| Cv Rating | 6.000 |
| Minimum Working Pressure (psi) | 45 |
| Special Item Information | Non-Locking Override Function; ISO 5599-2 Valve Less Base |
| Applications | Pneumatics |
| Width (Decimal Inch - 4 Decimals) | 2.1700 |
| Maximum Temperature (F) ( - 0 Decimals) | 120 |
| Type Of Power | Single Acting |
| Minimum Temperature (Deg F - 3 Decimals) | 5 |
| Type | IP 65 |
| Maximum Temperature (C) | 49 |
| Minimum Temperature (C - 2 Decimals) | -15 |
| UNSPSC Code | 40141605 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 06138655 |
