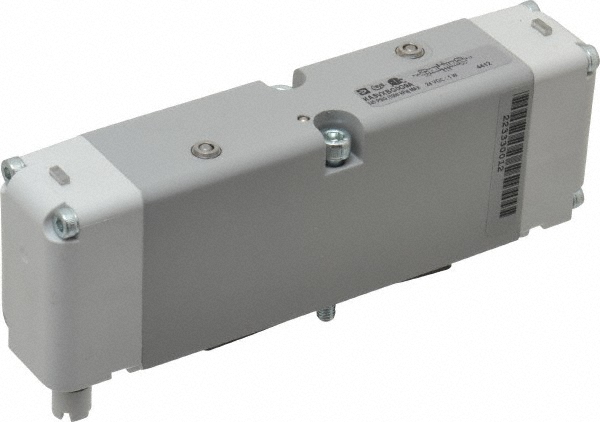

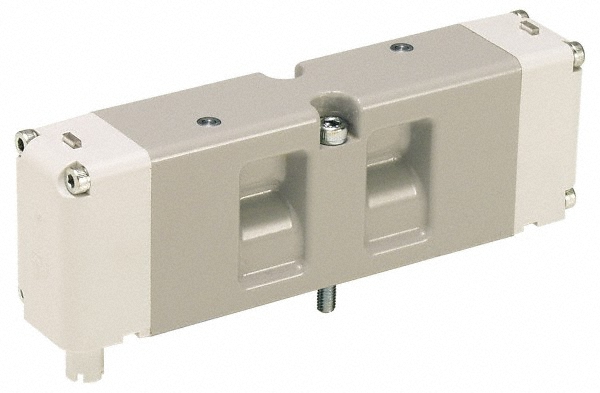

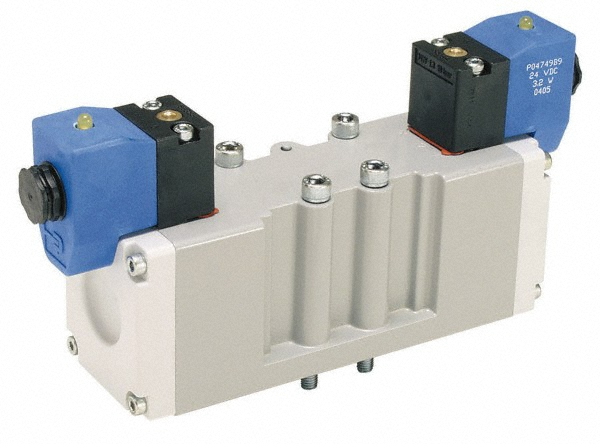

Normally Open Thru Ports 1 & 2, Aluminum, Buna-N Seal, 24Vdc
| Valve Type | Internally-Piloted |
|---|---|
| Valve Way & Position | 4-Way/2-Position |
| Valve Configuration | Manifold Mount |
| Port Size | 1/4 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | BSPP |
| Body Material | Aluminum |
| Seal Material | Nitrile |
| Voltage | 24V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 145.000 |
| Cv Factor Nc | 1.1000 |
| Overall Height (Decimal Inch) | 1.7700 |
| Overall Length (Decimal Inch) | 5.1000 |
| Standards | ISO 1179 Specifications; cCSAus Approved; BSPP Manifold & Subbase Ports Meet |
| Inlet Size | 1/4 in |
| Cv Rating | 1.100 |
| Minimum Working Pressure (psi) | 25 |
| Special Item Information | Non-Locking Override Function; 26 mm Plug-In; ISO 15407-2 Valve Less Base |
| Applications | Pneumatics |
| Wattage | 1 |
| Width (Decimal Inch - 4 Decimals) | 1.0200 |
| Maximum Temperature (F) ( - 0 Decimals) | 120 |
| Type Of Power | Double Acting |
| Minimum Temperature (Deg F - 3 Decimals) | 5 |
| Type | IP 65 |
| Maximum Temperature (C) | 49 |
| Minimum Temperature (C - 2 Decimals) | -15 |
| UNSPSC Code | 40141605 |
| Country of Origin | Hungary |
| MSC Number | MSC# 91209064 |
