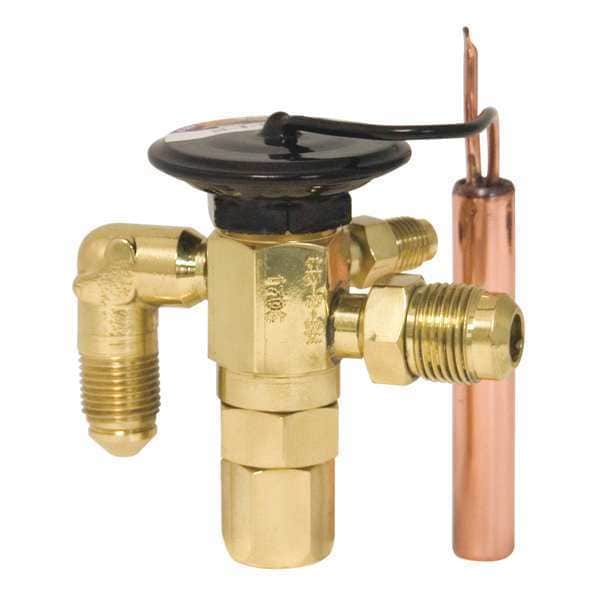

Themostatic Ex Valve, 3/4 to 1-1/2 Ton
| Refrigerant | R-22 |
|---|---|
| Equalizer Type | External |
| Connection | SAE Flare Angle |
| Evaporator Temp. Range (F) | -40 to 60 |
| Connector Inlet (In.) | 1/4 |
| Superheat | Externally Adjustable |
| Nominal Capacity (Tons) | 3/4 to 1-1/2 |
| ARI Standard | 750-70 |
| Control | Accuracy, Maintained Over a Wide Variation in Evaporator Load, Thereby Minimizing Hunting Flood Back and Coil Starving Problems |
| Capillary Length (In.) | 60 |
| Balanced Port Design | Balanced |
| Reducing Flare Nut Size (In.) | 3/8 x 1/4 |
| Connector Outlet (In.) | 1/2 |
| Not For Use With | Ammonia |
| Parker Model Number | CEAVW |
| Includes | Sensing Bulb Mounting Clamp |
| Type | Adjustable |
| Item | Thermostatic Expansion Valve |
| Liquid Subcooling Temp. (F) | 10 |
| For Capacity - Minimum | 0.1 ton |
| Reducing Flare Nut Size | 3/8 in |
| Outlet Connection Type | SAE Flare |
| Not For Refrigerant Type | Ammonia |
| For Capacity - Maximum | 8 ton |
| Series | C |
| Capillary Length | 5 ft |
| Equalizer Connection Type | SAE Flare |
| Inlet Connection Type | SAE Flare |
| Equalizer Connection Size | 1/4 in |
| Evaporator Temperature - Maximum | 60 deg F |
| Element Type | Removable |
| Outlet Connection Size | 1/2 in |
| Nominal Capacity - R-22 | 1.5 ton |
| Product Type | Thermostatic Expansion Valve |
| Valve Body Material | Brass |
| Superheat Adjustment | Field Adjustable |
| Strainer Mesh Size | 100 mesh |
| Configuration | Angle |
| Evaporator Temperature - Minimum | -40 deg F |
| Inlet Connection Size | 1/4 in |
| Liquid Subcooling Temperature | 10 Degrees F |
| For Refrigerant Type | R-22 |
| Operating Pressure - Maximum | 450 psi |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
