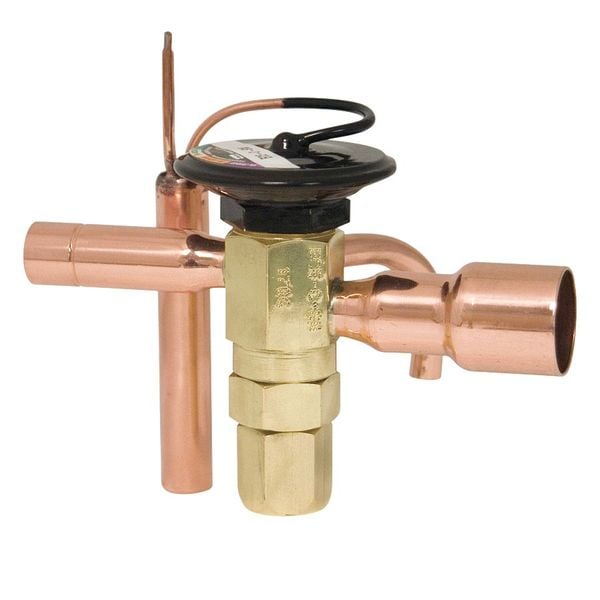

Themostatic Ex Valve, 8 to 12-1/2 Ton
| Refrigerant | R-410A |
|---|---|
| Equalizer Type | External |
| Connection | Straight Through Solder |
| Evaporator Temp. Range (F) | 0 to 50 |
| Parker Model Number | ECE-12-1/2-ZX200 |
| Not For Use With | R-22 |
| Nominal Capacity (Tons) | 8 to 12-1/2 |
| Balanced Port Design | Balanced |
| Item | Thermostatic Expansion Valve |
| Includes | Bulb Strap, Mounting Hardware |
| Capillary Length (In.) | 60 |
| Type | Adjustable |
| Adjustable Range | 3 to 18 deg (Static) |
| Superheat | Adjustable |
| Liquid Subcooling Temp. (F) | Variable |
| Connector Inlet (In.) | 5/8 |
| ARI Standard | 750-70 |
| Connector Outlet (In.) | 1-1/8 |
| Inlet Connection Gender | Female |
| Inlet Connection Size | 5/8 in |
| Element Type | Removable |
| Equalizer Connection Gender | Female |
| Configuration | Straight-Thru |
| For Capacity - Maximum | 8 ton |
| Valve Body Material | Brass |
| Capillary Length | 5 ft |
| Liquid Subcooling Temperature | Variable |
| For Capacity - Minimum | 0.1 ton |
| Series | C |
| For Refrigerant Type | R-410A |
| Product Type | Thermostatic Expansion Valve |
| Equalizer Connection Size | 1/4 in |
| Outlet Connection Gender | Female |
| Superheat Adjustment | Field Adjustable |
| Inlet Connection Type | Sweat |
| Not For Refrigerant Type | R-22 |
| Application Temperature | Air Conditioning |
| Operating Pressure - Maximum | 700 psi |
| Evaporator Temperature - Minimum | 0 deg F |
| Nominal Capacity - R-410A | 12.5 ton |
| Outlet Connection Size | 1-1/8 in |
| Evaporator Temperature - Maximum | 50 deg F |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
