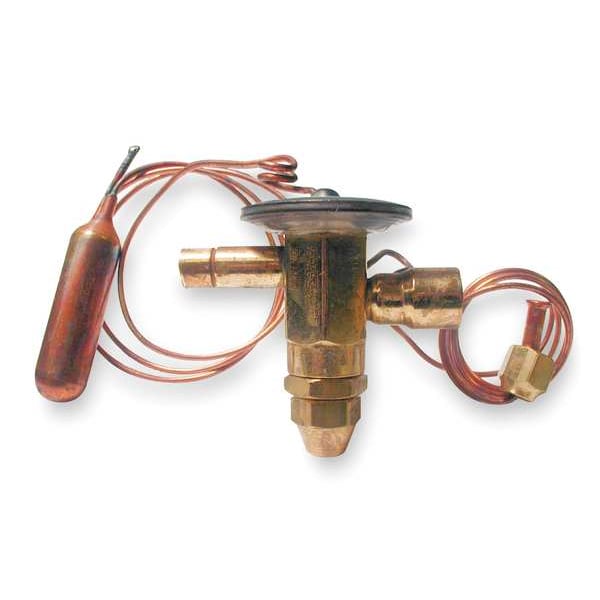

Thermostatic Expan Valve, 8 ton, 700 psi
| Refrigerant | R-410A |
|---|---|
| Equalizer Type | External |
| Connection | Inlet/Outlet OEM Specific |
| Evaporator Temp. Range (F) | 20 to 40 Degrees F |
| Superheat | Non-Adjustable |
| Connector Inlet (In.) | 3/8 |
| Adjustable Range | 1.5 to 13.5 deg (Static) |
| Capillary Length (In.) | 30 |
| Balanced Port Design | Balanced |
| Reducing Flare Nut Size (In.) | 1/4 |
| Not For Use With | R-22 |
| Item | Thermostatic Expansion Valve |
| Nominal Capacity (Tons) | 1-1/2 to 8 |
| Liquid Subcooling Temp. (F) | Variable |
| Includes | Bulb Strap, Mounting Hardware |
| Control | Bi-Flow Control |
| Connector Outlet (In.) | 1/2 |
| Type | HX Valve |
| Parker Model Number | HXEA-3-ZX200 |
| Series | HX/HXC |
| For Capacity - Minimum | 1.5 ton |
| Application Temperature | Air Conditioning |
| Equalizer Connection Type | SAE Flare |
| Product Type | Thermostatic Expansion Valve |
| For Capacity - Maximum | 8 ton |
| Equalizer Connection Size | 1/4 in |
| Evaporator Temperature - Maximum | 40 deg F |
| Not For Refrigerant Type | R-22 |
| Nominal Capacity - General | 3 ton |
| Operating Temperature - Minimum | -40 Degrees F |
| Element Material | Stainless Steel |
| Inlet Connection Gender | Female |
| Valve Body Material | Brass |
| Operating Temperature - Maximum | 190 Degrees F |
| Outlet Connection Size | 1/2 in |
| Evaporator Temperature - Minimum | 20 deg F |
| Control Direction | Bi-Directional |
| Operating Pressure - Maximum | 700 psi |
| Outlet Connection Gender | Female |
| Capillary Length | 30 in |
| Liquid Subcooling Temperature | Variable |
| For Refrigerant Type | R-410A |
| Superheat Adjustment | Non-Adjustable |
| Inlet Connection Size | 3/8 in |
| Standards | UL Listed |
| Reducing Flare Nut Size | 1/4 in |
| Element Type | Permanent |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
