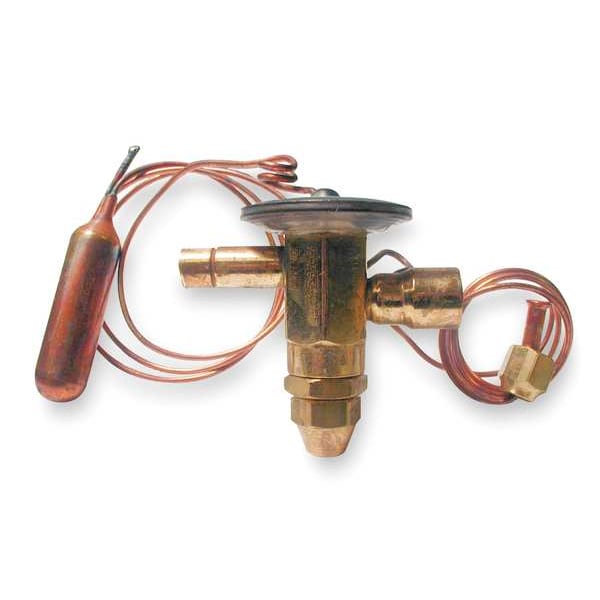

Valve, Expansion, R410a
| Refrigerant | R-410A |
|---|---|
| Equalizer Type | External |
| Connection | Straight Through Solder |
| Evaporator Temp. Range (F) | 10 to 60 |
| Bleed Percentage | 15 |
| Item | Thermostatic Expansion Valve |
| Control | Accuracy, Maintained Over a Wide Variation in Evaporator Load, Thereby Minimizing Hunting Flood Back and Coil Starving Problems |
| Connector Outlet (In.) | 1/2 |
| Superheat | Externally Adjustable |
| ARI Standard | 750-70 |
| Includes | Sensing Bulb Mounting Clamp |
| Type | Adjustable |
| Parker Model Number | HAE3ZX200B15 |
| Liquid Subcooling Temp. (F) | 10 |
| Nominal Capacity (Tons) | 1-1/2 to 3 |
| Capillary Length (In.) | 60 |
| Connector Inlet (In.) | 3/8 |
| Balanced Port Design | Balanced |
| Not For Use With | Ammonia |
| Bleed Capacity | 15 % |
| Nominal Capacity - General | 3 ton |
| Nominal Capacity - R-410A | 3 ton |
| Liquid Subcooling Temperature | 10 Degrees F |
| For Capacity - Maximum | 3 ton |
| Product Type | Thermostatic Expansion Valve |
| Not For Refrigerant Type | Ammonia |
| Outlet Connection Type | Sweat |
| Outlet Connection Size | 1/2 in |
| Evaporator Temperature - Minimum | 10 deg F |
| Evaporator Temperature - Maximum | 60 deg F |
| Inlet Connection Size | 3/8 in |
| Configuration | Straight-Thru |
| Capillary Length | 5 ft |
| For Refrigerant Type | R-410A |
| Inlet Connection Type | Sweat |
| Capillary Diameter | Not Applicable |
| For Capacity - Minimum | 1.5 ton |
| Superheat Adjustment | Externally Adjustable |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
